Showtec ACT Profile 50 WW LED Zoom Profile

Name: Showtec ACT Profile 50 WW LED Zoom Profile
Brand: Showtec
Price: 385.58 GBP
Availability: InStock

Price Each £321.32 (£385.58 Including VAT at 20%)

REF: JP109230

Quantity:

Showtec ACT Profile 50 WW LED Zoom Profile

The Showtec ACT Profile 50 WW LED Zoom Profile is a 50 watt Warm White COB LED ellipsoidal with high CRI, suitable for theatrical applications. It operates within a 16° - 32° manually adjustable zoom range and projects a hard-edge, precisely focused light. The ACT Profile 50 WW features a manually and DMX controllable 0 - 100 % dimmer function and comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where its needed.

Click Here for Printer Friendly Version

Showtec ACT Profile 50 WW LED Zoom Profile Features

- 50 W Warm White COB LED ellipsoidal
- Suitable for theatrical and studio applications
- High CRI for accurate colour rendering
- DMX dimmer function and manually controllable zoom

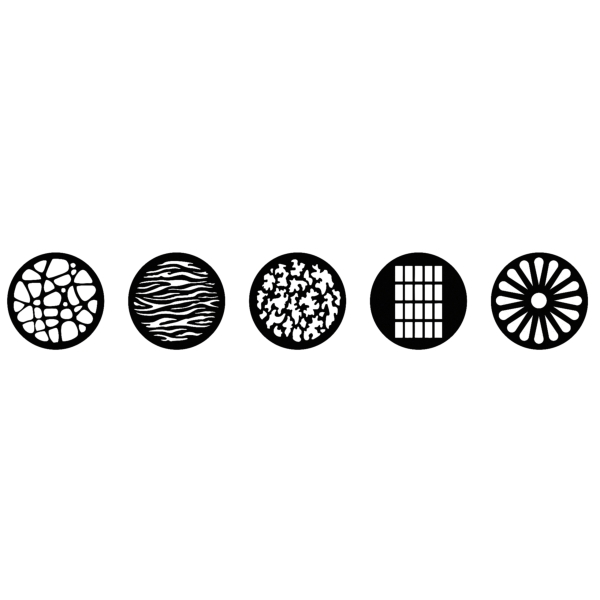

- Five design gobos included

Showtec ACT Profile 50 WW LED Zoom Profile Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 50 W
- LED Colour Type: WW
- Refresh Rate: 1100 Hz
- Illuminance @ 2 m: 2148 lx
- Luminous Flux (Total): 1315 lm
- CRI: 97
- Maximum CCT: 3200 K

Optical:
- Beam Angle Minimum (Circular): 13 °
- Beam Angle Max. (Circular): 30 °
- Zoom Type: Manual

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 2
- Display: LCD

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 57 W
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Noise Level Maximum: 36 dB
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 170 x 263 x 411 mm
- Weight: 2.6 kg

Product Properties:
- Cooling: Axial fan

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 45 °C

Further Product Information Below

Showtec Act 50 Profile Manual (PDF)

Showtec ACT Profile 50 WW LED Zoom Profile Supplied With

- powerCON cable
