Showtec ACT Profile 50 RGBAL Zoom Profile

Showtec ACT Profile 50 RGBAL Zoom Profile Features

- Modified 150 W RGBAL COB LED ellipsoidal
- Suitable for theatrical and studio applications
- DMX dimmer function and manually controllable zoom

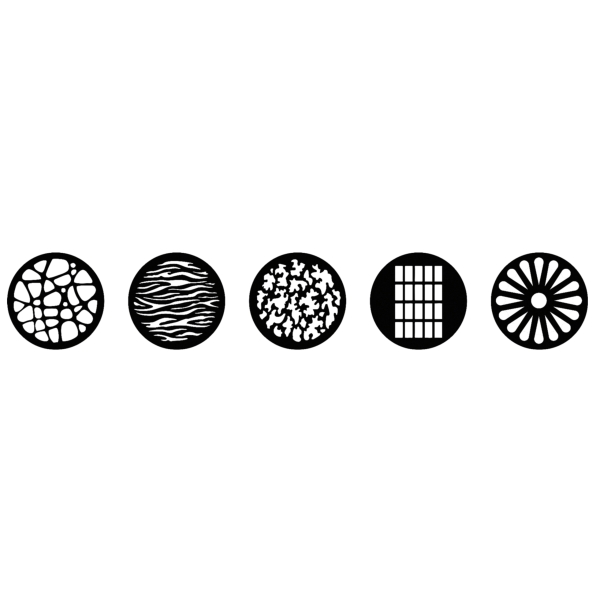

- Five design gobos included
- Hard edge, accurately focused field of light

Showtec ACT Profile 50 RGBAL Zoom Profile Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 150 W
- LED Colour Type: RGBAL
- Refresh Rate: 1200 Hz
- Illuminance:
  - 2 m: 1205 lx
  - 3 m: 536 lx
  - 5 m: 193 lx
- Luminous Flux:
  - Total: 220 lm
  - Red: 195 lm
  - Green: 271 lm
  - Blue: 113 lm
  - Amber: 107 lm
  - Lime: 234 lm
- CRI: 92
- Minimum CCT: 2700 K
- Maximum CCT: 10000 K

Optical:
- Beam Angle Minimum (Circular): 13 °
- Beam Angle Maximum (Circular): 26 °
- Zoom Type: Manual
- Zoom Ratio: 1:2

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 5, 8, 12
- Protocols: DMX, RDM
- Display: OLED
- Dim Curve:
  - Linear
  - Square
  - I-Square
  - S-Curve
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 55 W
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Product Properties:
- Cooling: Convection/Axial fan

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C (113 °F)

Physical:
- Noise Level Maximum: 31.9 dB
- IP Rating: IP20 (indoor use only)
- Housing: ABS, Aluminium
- Colour: Black
- Dimensions (W x H x D): 168 x 293 x 430 mm
- Weight: 3 kg

Further Product Information Below

Showtec Act 50 Profile Manual (PDF)

Showtec ACT Profile 50 RGBAL Zoom Profile Suplied With

- powerCON cable

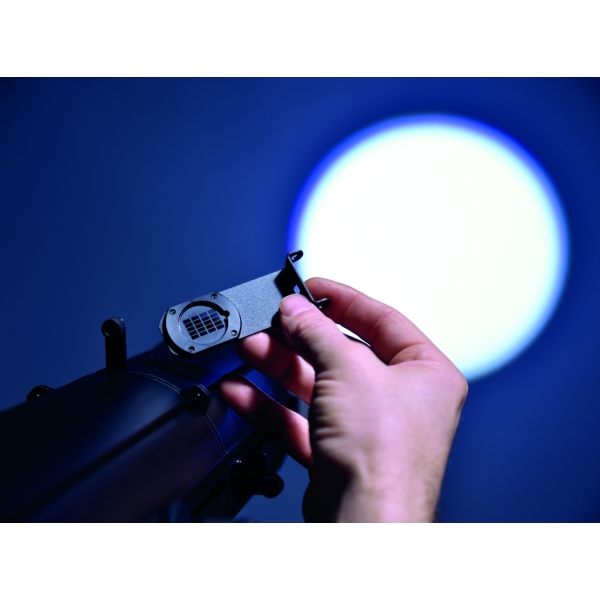

- Filterframe
- Metal Gobo's (5x)
- Gobo Holder
