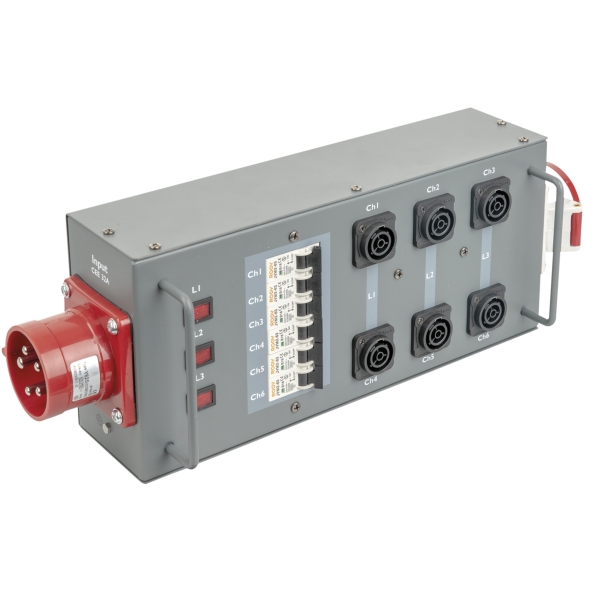

Showgear Power Split 32 True CEE 32 A, Power Distribution Unit, 32A 3-Phase In, PowerCON TRUE1 Out

Showgear Power Split 32 True CEE 32 A Features

- Power indicators for each phase

Electrical Specifications and Connections:
- Rated Current (A): 32 A
- Power Connector In: CEE5P 32 A
- Power Connector Out: CEE5P 32 A, Power Pro True
- MCB Rated Current: 16 A
- MCB Class: Class B
- MCB Poles: 2
- Pins: 5

Physical:
- IP Rating: IP20 (indoor use only)
- Housing: Metal
- Colour: Grey
- Dimensions (W x H x D): 165 x 125 x 465 mm
- Weight: 4.5 kg

Product Properties:
- LED Indicators: Power

Rigging:
- Mounting Options: Clamp
- Fixed Mounting Option: M10

Thermal Specifications:
- Maximum Ambient Temperature: 60 °C (140 °F)
- Minimum Ambient Temperature: -20 °C (-4 °F)

Further Product Information Below

Showgear Power Split 32 True CEE 32 A Manual (PDF)
