Showgear PSA-32A12S Rack Mount Power Distribution Unit, 32A 3-Phase In, Schuko Out

Name: Showgear PSA-32A12S Rack Mount Power Distribution Unit, 32A 3-Phase In, Schuko Out
Brand: Showgear
Price: 464.84 GBP
Availability: InStock

Price Each £387.37 (£464.84 Including VAT at 20%)

REF: JP110161

Quantity:

Showgear PSA-32A12S Rack Mount Power Distribution Unit, 32A 3-Phase In, Schuko Out

The Showgear PSA-32A12S Rack Mount Power Distribution Unit. Bring safety to the stage! Power is the most important component for a successful show on any stage. Showgear has developed, together with leading rental companies, the power distributors that will keep your power and equipment safe. The PSA series provide real-time voltage and current information during your show. Now you can monitor your setup and make sure that the power is correctly distributed at all times.

Click Here for Printer Friendly Version

Showgear PSA-32A12S Rack Mount Power Distribution Unit Features

- Digital voltage & amperage-monitoring per phase
- 16 A C-type automatic fuses per phase
- Schuko output at Front

Showgear PSA-32A12S Rack Mount Power Distribution Unit Specifications

- Display: 7-segment, LED
- Conductors: 5

Electrical Specifications and Connections:
- Rated Current (A): 32 A
- Power Connector In: 1x CEE5P 32 A
- Power Connector Out: 13x Schuko Socket, Type F
- Cable Length: 1.5 m
- MCB Rated Current: 16 A
- MCB Class: Class C
- MCB Poles: 1
- RCCB Class: A
- RCCB Sensitivity: 30 mA
- RCCB Poles: 4
- Pins: 5

Physical:
- Dimensions (W x H x D): 483 x 176 x 198 mm
- Weight: 9.8 kg
- Rack Units: 4 U
- IP Rating: IP20 (indoor use only)
- Housing: Metal
- Colour: Grey
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Ambient Temperature: -5 °C (23 °F)

Further Product Information Below

Showgear PSA-32A12S Manual (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Showgear PSA-32A12S Rack Mount Power Distribution Unit, 32A 3-Phase In, Schuko Out

Related products:

Mennekes 10m 32A Male - 32A Female 3PH 6mm 5C Cable

PCE Schuko Plug (0511-s)

PCE Schuko Socket (2522-s)

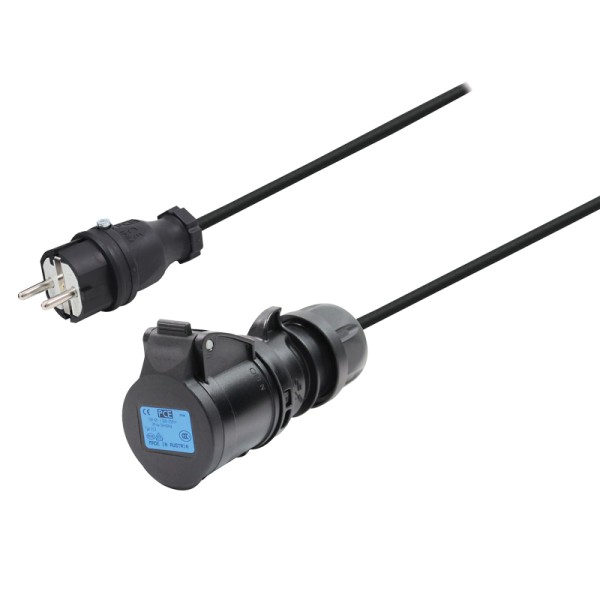

Schuko Plug to PCE 16A Black Socket 1m Cable
