Nexo STM M46 Quad 6.5-Inch Main Line Array Speaker

Nexo STM M46 Quad 6.5-Inch Main Line Array Speaker Specifications

- Frequency Response: 85Hz – 19kHz ±3dB
- Usable Range @-6dB: 80Hz – 20kHz
- Sensitivity 1W @ 1m: 110dB SPL Nominal
- Nominal Peak SPL @ 1m: 145dB Peak
- Dispersion: 90° Horizontal x 0-10° vertical
- Crossover Frequency: 850 Hz
- Nominal Impedance:
  - HF: 16Ω (12 Ω min)
  - LF-MF:16Ω (12 Ω min)
- Amplified Controller: NXAMP4x4 - 3x STM M46 in parallel on 2 NXAMP4x4 channels (2x 4000W / 2Ω)
- Electronic Controller: The NEXO NXAMP4x4 presets are precisely matched to the STM Series cabinets and include sophisticated protection algorithms. Using STM Series cabinets without a properly connected NEXO NXAMP4x4 will result in poor sound quality and can damage components
- Drivers:
  - HF: 4x 2.5-inch voice coil, 1.4-inch throat Neodymium 16 Ω drivers, Ketone Polymer diaphragm
  - LF-MF: 4x 6.5-inch (17cm) 16 Ω flat membrane high excursion drivers

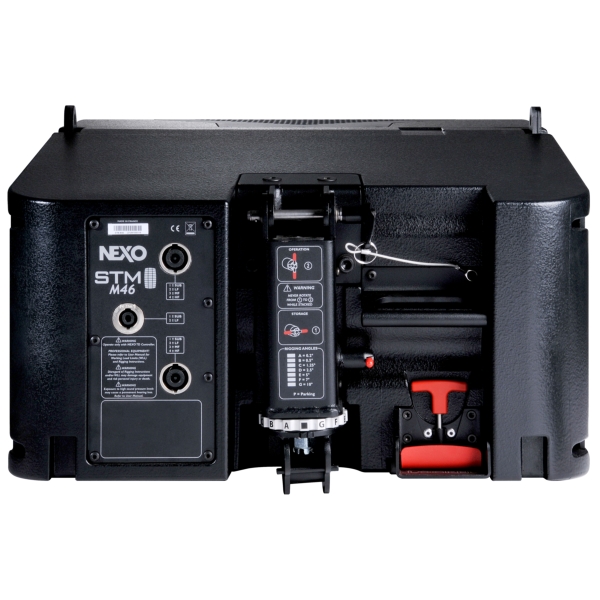

- Connectors: 2x NL8-MDV Speakon 8 poles (in/out) & 1x NLT4-MDV Speakon 4 poles (to STM S118 and B112)
- Construction: PU Composite Low Density – Polyurethane water based black coating
- Fittings:
  - Handles: 3 handles (2 sides and 1 rear)

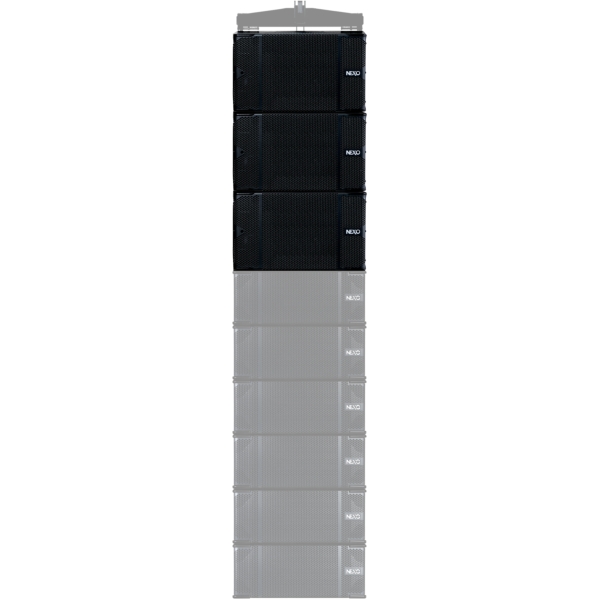

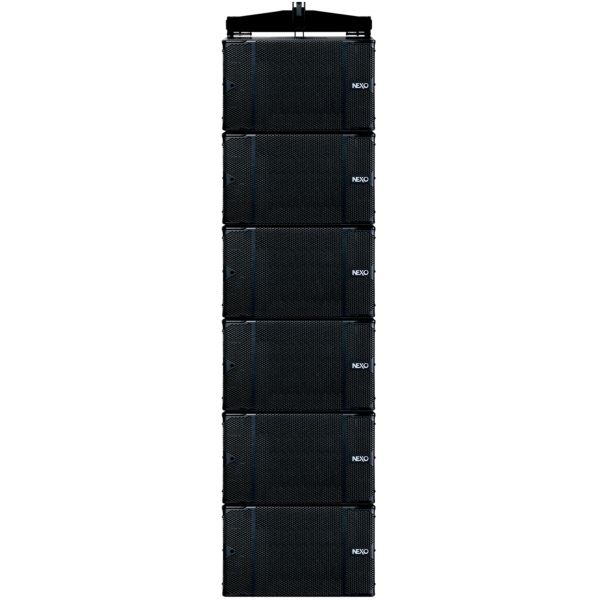

  - Rigging: Integral 3 points flying system. Inter cabinet angle adjustments from 0.2° to 10° in logarithmic steps

Physical:
- Colour: Black
- Front: Perforated Dark Grey Metal Grille
- Dimensions (W x H x D): 575 x 350 x 715 mm
- Weight: 59 kg

Exploded Drawing below
