QTX C-BAR RGB LED Batten, 24x 3W

Price Each £93.51 (£112.21 Including VAT at 20%)

REF: JP109890

Quantity:

QTX C-BAR RGB LED Batten, 24x 3W

The QTX C-BAR RGB LED Batten is an LED beam and effects bar with 24 high output COB tri-colour LEDs to provide colour washes and moving patterns against walls, ceilings or even across floors. 8 groups of 3 LEDs can be controlled by auto or sound activated modes from preset internal colour sequences. Alternatively, in manual mode, the bar can be set to static colour or operated remotely by DMX in various channel modes. Supplied with tilt-adjustable brackets for mounting to a wall or ceiling.

Click Here for Printer Friendly Version

QTX C-BAR RGB LED Batten Features

- 24 high output tri-colour COB LEDs
- 8 independent segments for pattern chases
- 5, 8, 14, 26 and 50 channel DMX modes

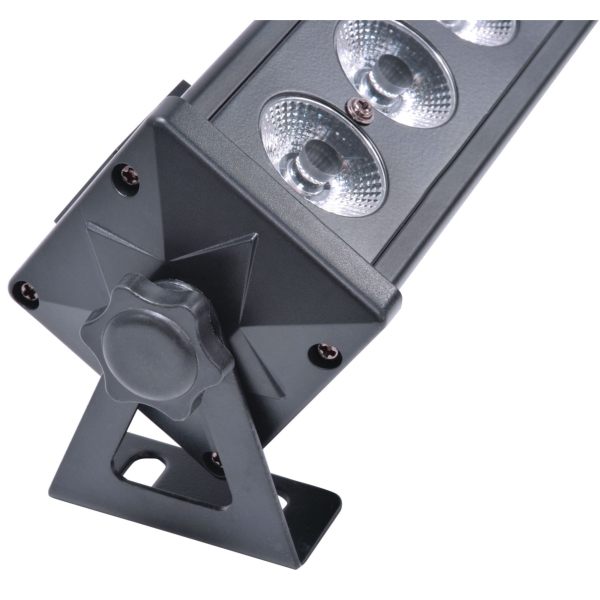

- Supplied with end mounting brackets

QTX C-BAR RGB LED Batten Specifications

- Power supply: 110-240Vac, 50/60Hz (IEC)
- Power consumption: 80W
- Fuse: F3AL
- LED type: 3W RGB 3-in-1 COB
- LED quantity: 24
- Beam angle: 45°
- Modes:
  - DMX
  - Auto
  - Sound-activated
  - Master/Slave
- Sections: 8 (3 LEDs per section)
- DMX channels: 5, 8, 14, 26 or 50
- Effects:
  - Strobe
  - Pulse
  - Gradual fade
  - Cycle
  - Sequence
  - Sound activated
  - Static colour
- Dimensions (W x H x D): 65 x 1020 x 65 mm
- Weight: 1.8 kg

Further Product Information Below

QTX C-BAR Manual (PDF)

QTX C-BAR RGB LED Batten Supplied With

- 1x QTX C-BAR RGB DMX LED Bar
- Adjustable end mounting brackets
- 1x IEC mains power lead
