Penn Elcom 2U Rackmount Power Distribution Unit (PDU16-UN)

Name: Penn Elcom 2U Rackmount Power Distribution Unit (PDU16-UN)
Brand: Penn Elcom
Price: 246.36 GBP
Availability: InStock

Price Each £205.30 (£246.36 Including VAT at 20%)

REF: JP107916

Quantity:

Penn Elcom 2U Rackmount Power Distribution Unit (PDU16-UN)

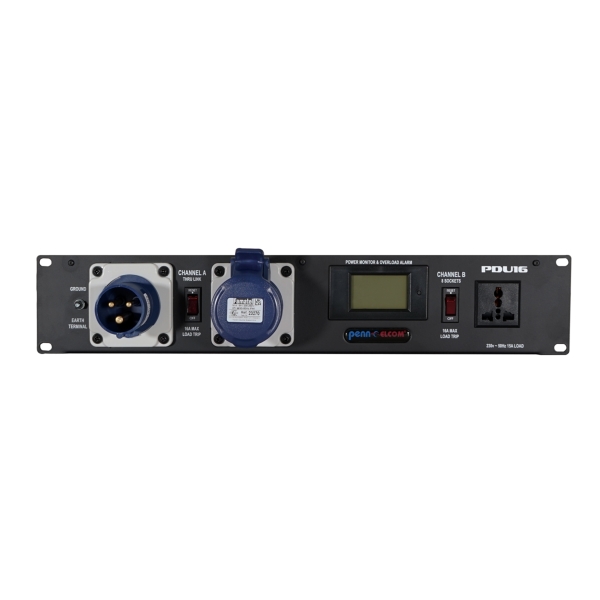

2U 16A rack mount PDU with power monitor and C-FORM in/out with overload trip switch. 8 x world wide universal outlet sockets with 16A overload trip switch. Ideal solution for fast power distribution in stage, studio and touring environments.

Click Here for Printer Friendly Version

Penn Elcom 2U Rackmount Power Distribution Unit (PDU16-UN) Features

Circuit A
- Main input: C-FORM 240V 16A IP44 panel mount appliance inlet
- Protection: Illuminated circuit breaker overload protection between dual 16A sockets
- Output: C-FORM 240V 16A IP44 panel mount appliance outlet
Circuit B
- Output: 8 Universal sockets useable with plugs from the UK, US, Europe and Australia, with a maximum 16A combined load (Schuko type plugs have a 2 pin connection only)
- Protection: Illuminated circuit breaker 16A overload protection
- LCD monitor: LCD power monitor giving voltage, current, power and energy levels
- Earth link: M4 screw terminal for rack grounding

Penn Elcom 2U Rackmount Power Distribution Unit (PDU16-UN) Specifications

- Compliance: All components used in this conform to current RoHS, CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
- Nominal voltage: 110V~230V
- Usable voltages: 110V~240V full range
- Frequency: 50/60HZ full range
- Max. A/C output: Current 16A
- Dimensions (H x W x D): 90 x436 x 100xmm(Overall width including rack ears 483mm)
- Weight: 2.7kg

Further Product Information Below

Penn Elcom PDU16-UN Manual (PDF)
