Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-UN32)

Name: Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-UN32)
Brand: Penn Elcom
SKU: 0702338067358
Price: 400.61 GBP
Availability: InStock

Price Each £333.84 (£400.61 Including VAT at 20%)

REF: JP105604

Quantity:

Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-UN32), 2U 32A AC rack mount PDU with 8 x universal sockets, overload protection and power monitoring, designed to provide a versatile hook-up for the distribution of AC power within multimedia, theatre and touring rack applications.

Click Here for Printer Friendly Version

2U 32A Rackmount Power Distribution Unit (PDU16-UN32) Features

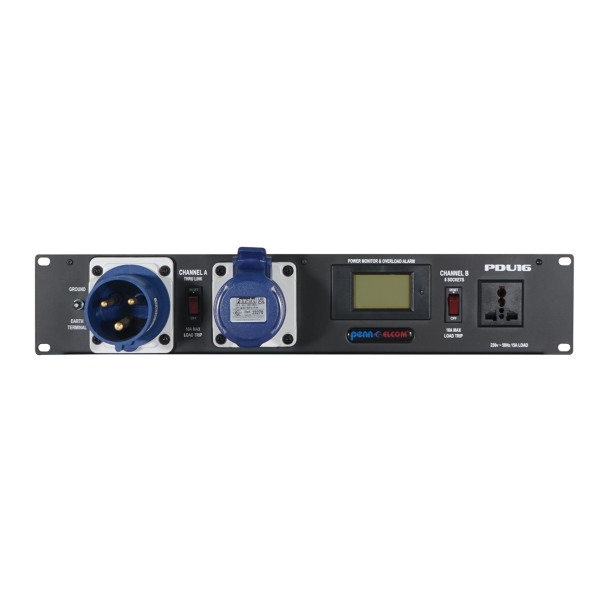

Circuit A
- Main input - C-FORM 240V 32A IP44 panel mount appliance inlet
- Protection - Illuminated circuit breaker overload protection between dual 16A sockets
- Output - C-FORM 240V 16A IP44 panel mount appliance outlet
Circuit B

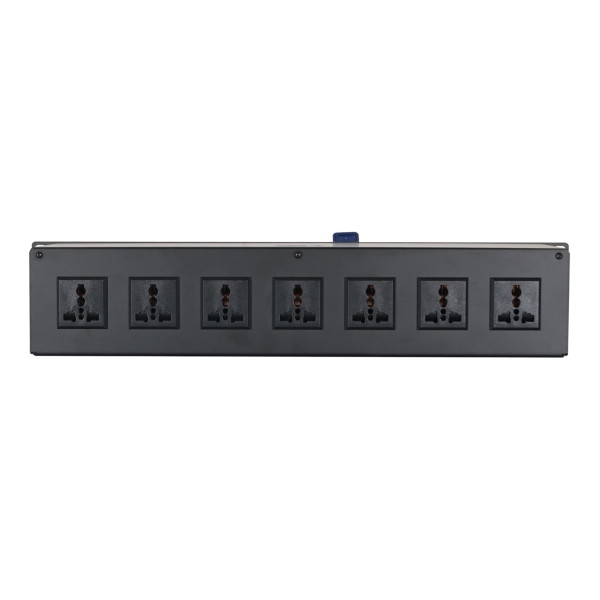

- Output - 8 universalsockets useable with plugs from the UK, US, Europe and Australia, with a maximum 16A combined load. (Schuko type plugs have a 2 pin connection only)
- Protection: Illuminated circuit breaker 16A overload protection
- LCD monitor: LCD power monitor giving voltage, current, power and energy levels
- Earth link: M4 screw terminal for rack grounding

2U 32A Rackmount Power Distribution Unit (PDU16-UN32) Specifications

- All components used in this conform to current RoHS, CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
- Nominal voltage: 110V~230V
- Usable voltages: 110V~240V full range
- Frequency: 50/60HZ full range
- Max. A/C output: Current 32A
- Dimensions (H x W x D): 90 x 436 x 100mm (Overall width including rack ears 483mm)
- Weight: 2.7kg
