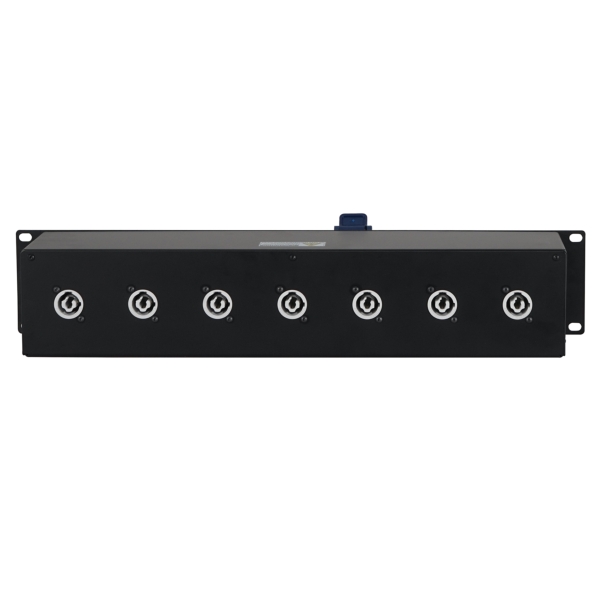

Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-32PC)

Name: Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-32PC)
Brand: Penn Elcom
Price: 363.17 GBP
Availability: InStock

Price Each £302.64 (£363.17 Including VAT at 20%)

REF: JP106466

Quantity:

Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-32PC)2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets, overload protection and power monitoring. 2U high horizontal mounting unit designed to provide versatile hook-up for the distribution of AC power within multimedia, theatre and touring rack applications.

Click Here for Printer Friendly Version

2U 32A Rackmount Power Distribution Unit (PDU16-32PC) Features

Circuit A:
- Main input - C-FORM 240V 32A IP44 panel mount appliance inlet- Protection - Illuminated circuit breaker overload protection between dual 16A sockets
- Output - C-FORM 240V 16A IP44 panel mount appliance outlet
Circuit B:
- Output - 8 NeutrikpowerCON sockets with a maximum combined load 16A
- Protection - Illuminated circuit breaker 16A overload protection
- LCD monitor - LCD power monitor giving voltage, current, power, energy levels and overload alarm
- Earth link - M4 screw terminal for rack grounding

2U 32A Rackmount Power Distribution Unit (PDU16-32PC) Specifications

- Compliance: All components used in this conform to current RoHS, CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
- Nominal voltage: 110V~240V
- Usable voltages:Light industry level, criteria A)
- Nominal voltage: 110V~240V
- Usable voltages: 110V~240V full range
- Frequency: 50/60HZ full range
- Max. A/C output: Current 16A
- Case size: 88 x 140 x 430mm (Overall with including rack ears 483mm)
- Weight: 2.5kg

Further Product Information Below

Penn Elcom PDU16-32PC Manual (PDF)
