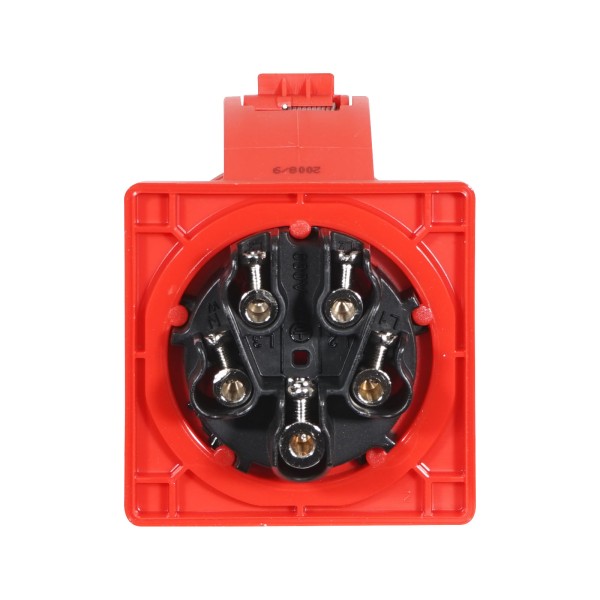

PCE 32A 415V 3P+N+E Panel Socket for IMST/ISCHL (325-6F7RVX)

Price Each £15.18 (£18.22 Including VAT at 20%)

REF: JP103456

Quantity:

PCE 32A 415V 3P+N+E Panel Socket for IMST/ISCHL (325-6F7RVX), 32A IP44 rated CEE-type flanged panel mount socket suitable for IMST/ISCHL distribution boxes in the event and rental industry.

Click Here for Printer Friendly Version

32A 415V 3P+N+E Panel Socket for IMST/ISCHL (325-6F7RVX) Features

- Nickel plated screw terminals
- Polyamide 6 body offers excellent impact resistance
- High abrasion resistance
- IP44 rated
- Made in the EU

32A 415V 3P+N+E Panel Socket for IMST/ISCHL (325-6F7RVX) Specifications

- 32A 415V
- 3P+N+E configuration
- 58mm panel cut out diameter
- 75 x 75mm flange
- Dimensions (H x W x D): 75 x 75 x 95mm
- Weight: 0.07kg
