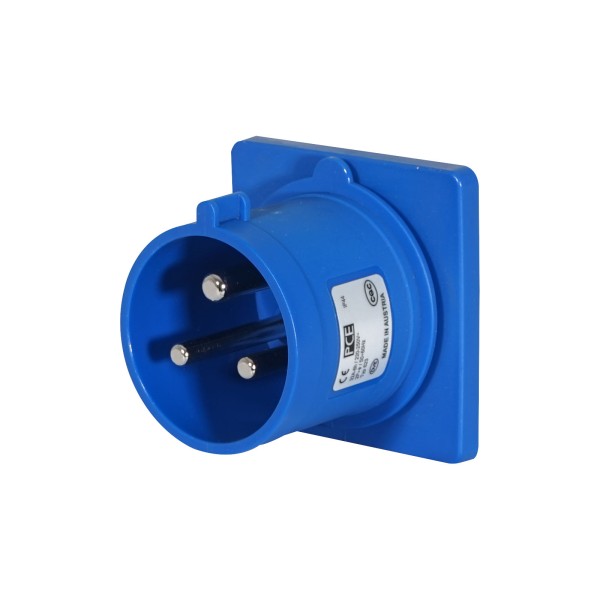

PCE 32A 230V 2P+E Panel Socket for IMST/ISCHL (323-6F7BVX)

Price Each £13.14 (£15.77 Including VAT at 20%)

REF: JP103452

Quantity:

PCE 32A 230V 2P+E Panel Socket for IMST/ISCHL (323-6F7BVX), 32A IP44 rated CEE-type flanged panel mount socket suitable for IMST/ISCHL distribution boxes in the event and rental industry.

Click Here for Printer Friendly Version

32A 230V 2P+E Panel Socket for IMST/ISCHL (323-6F7BVX) Features

- Nickel plated screw terminals
- Polyamide 6 body offers excellent impact resistance
- High abrasion resistance
- IP44 rated
- Made in the EU

32A 230V 2P+E Panel Socket for IMST/ISCHL (323-6F7BVX) Specifications

- 32A 240V
- 2P+E configuration
- 55mm panel cut out diameter
- 75 x 75mm flange
- Dimensions (H x W x D): 75 x 75 x 85mm
- Weight: 0.06kg
