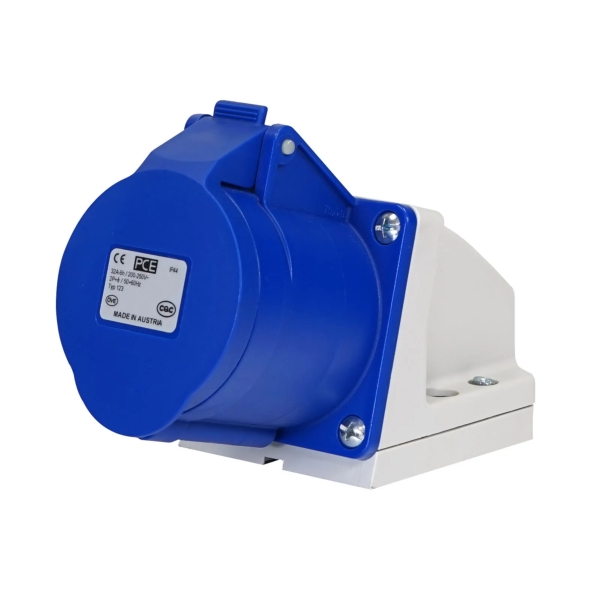

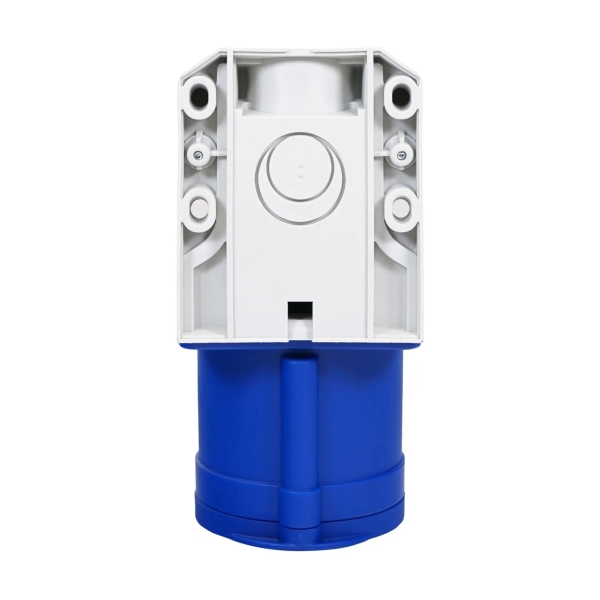

PCE 32A 230V 2P+E Wall Mount Angled Socket (123-6K)

Price Each £11.17 (£13.40 Including VAT at 20%)

REF: JP109866

Quantity:

PCE 32A 230V 2P+E Wall Mount Angled Socket (123-6K)

The PCE 32A 230V 2P+E Wall Mount Angled Socket is a 32A 230V IP44 rated CEE-type angled wall mount socket suitable for power connections in the event and rental industry. Angled design reduces stress on the connection and cable.

Click Here for Printer Friendly Version

PCE 32A 230V 2P+E Wall Mount Angled Socket Features

- Screw terminals
- Polyamide 6 body offers excellent impact resistance
- High abrasion resistance
- IP44 rated
- Made in the EU

PCE 32A 230V 2P+E Wall Mount Angled Socket Specifications

- Fuse: 32A 230V
- 2P+E configuration
- M25 threaded gland entry (supplied with blank)
- 20mm & 25mm knockouts
- 33 x 58mm fixing centres
- 85 x 70.5mm flange
- Dimensions (W x H x D): 145 x 70.5 x 103 mm
- Weight: 0.249 kg

Further Product Information Below

PCE 123-6K Manual (PDF)

PCE 123-6K Data Sheet (PDF)

PCE 123-6K Technical Drawing (PDF)

PCE 123-6K Certification (PDF)
