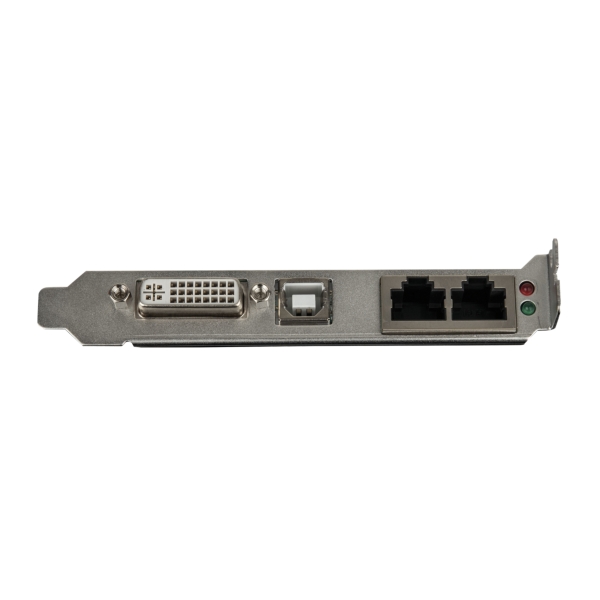

NovaStar MSD-300-1 1.3 Mpx Sender Card

Name: NovaStar MSD-300-1 1.3 Mpx Sender Card
Brand: NovaStar
Price: 186.14 GBP
Availability: InStock

Price Each £155.12 (£186.14 Including VAT at 20%)

REF: JP108839

Quantity:

NovaStar MSD-300-1 1.3 Mpx Sender Card

The NovaStar MSD-300-1 1.3 Mpx Sender Card is a basic sending card which lets you operate your LED Screen which is equipped with the NovaStar control system.
The MSD-300 can be plugged in any PC with a free PCI slot. With the MSD-300 setting up your LED screen becomes easy and simple. Furthermore the MSD-300 can play any content of your PC direct on the LED screen.

Click Here for Printer Friendly Version

NovaStar MSD-300-1 1.3 Mpx Sender Card Features

- Cabinet config files saving and sending
- 2x ethernet output port
- DVI video Input port
- Lightsensor interface port
- 1.3 Mpx loading capacity

NovaStar MSD-300-1 1.3 Mpx Sender Card Specifications

Inputs:
- Single Link DVI: 1
- Light Sensor Port: 1

Outputs:
- Main Outputs: 2

Extra Features:
- Scaling Function: No

Control and Programming:
- Control System: Novastar
- Maximum Loading Capacity: 1.3 Mpx
- Maximum Input Resolution: Width and Height can be defined by users

Electrical Specifications and Connections:
- Power Supply: 5 V DC
- Power Consumption: 3 W
- Data Connector Out: RJ45

Mechanical Specifications:
- Weight: 0.1 kg
- IP Rating: IP20 (indoor use only)

Further Product Information Below

NovaStar MSD-300-1 Pro Manual (PDF)

NovaStar MSD-300-1 Pro Software Manual (PDF)
