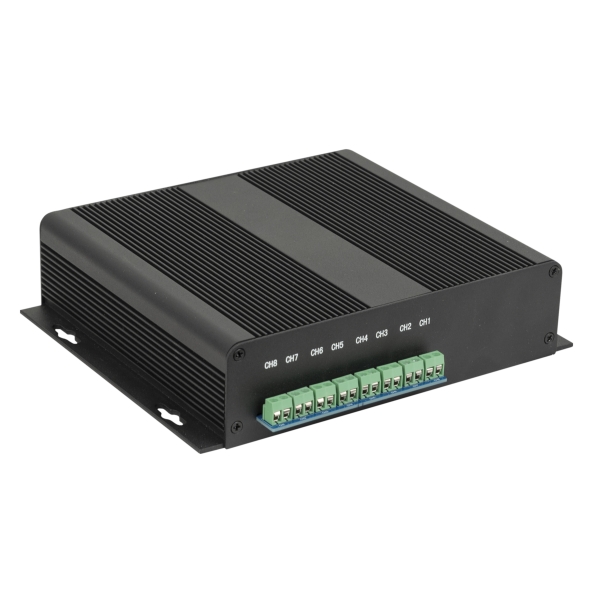

NovaStar M3 MFN300 Multi-Function Box

NovaStar M3 MFN300 Multi-Function Box Features

- 2x ethernet port connection for use at any position within the screen network
- 2x external sensor inputs for additional for additional Light/Temperature sensor
- Audio output
- RS-232 connection

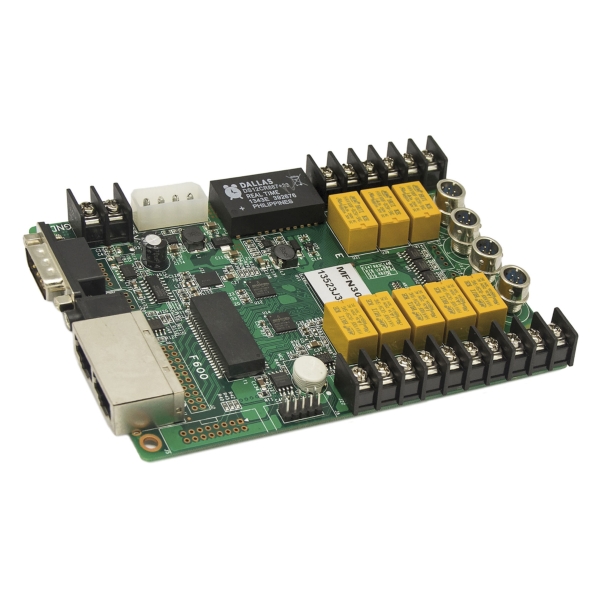

- 8x relay power switch control

NovaStar M3 MFN300 Multi-Function Box Specifications

Inputs:
- RS-232: 1
- Light Sensor Port: 2
- Temperature Sensor Port: 2

Outputs:
- Main Output Connector: TRS balanced 3.5 mm
- Relay Contacts: 8
- Relay Contact Type: NC

Control and Programming:
- Control System: Novastar

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 3.8 W
- Power Connector In: IEC
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Height (Including Handles): 49 mm
- Width (Including Handles): 206 mm
- Depth (Including Handles): 186 mm
- Weight: 1.12 kg
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Thermal Specifications:
- Maximum Ambient Temperature: 70 °C
- Minimum Ambient Temperature: -20 °C
- Operating Humidity: 0-95 %rH

NovaStar M3 MFN300 Multi-Function Box Supplied With

- IEC cable
