NovaStar H-Series Output Card with 1x HDMI 2.0, 1x 4K @60 Hz

Name: NovaStar H-Series Output Card with 1x HDMI 2.0, 1x 4K @60 Hz
Brand: NovaStar
Price: 1329.64 GBP
Availability: InStock

Price Each £1,108.03 (£1,329.64 Including VAT at 20%)

REF: JP108906

Quantity:

NovaStar H-Series Output Card with 1x HDMI 2.0, 1x 4K @60 Hz

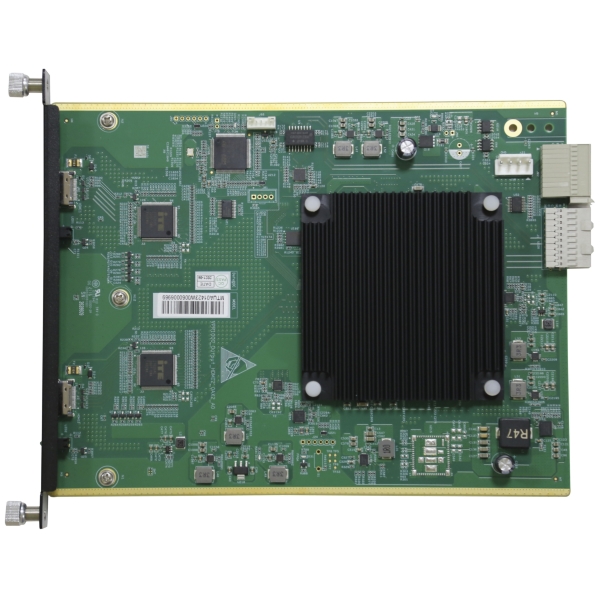

The NovaStar H-Series Output Card with 1x HDMI 2.0 is an output card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has two HDMI 2.0 outputs – please note that output 2 offers a duplicated signal of output 1. The supported resolution is 4096 x 2160 @60 Hz, with maximum custom resolutions up to 8192 x 1146 @60 Hz or 1092 x 7680 @60 Hz. It supports 8-bit or 10-bit RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 outputs. Two status LEDs indicate whether the output connectors are connected normally.

Please Note: This Item is to Order from NavaStar and is NON CANCELLABLE. If you require a lead time please contact us first before you place your order.

Click Here for Printer Friendly Version

NovaStar H-Series Output Card with 1x HDMI 2.0, 1x 4K @60 Hz Features

- Supports HDMI 2.0
- 4K / 60 Hz compatible
- Status LED per HDMI connector

NovaStar H-Series Output Card with 1x HDMI 2.0, 1x 4K @60 Hz Specifications

Outputs:
- HDMI 2.0 (Out): 2 (1x Output, 1x Duplicate)
- Output Slots: 1

Control and Programming:
- Maximum Output Resolution: 4096 x 2160 , 8192 x 1080

Mechanical Specifications:
- Weight: 0.8 kg
- IP Rating: IP20 (indoor use only)
- Colour: Black

Further Product Information Below

NovaStar H2 Manual (PDF)

NovaStar H5 Manual (PDF)

NovaStar H9 Manual (PDF)

Please Note: This Item is to Order from NavaStar and is NON CANCELLABLE. If you require a lead time please contact us first before you place your order.
