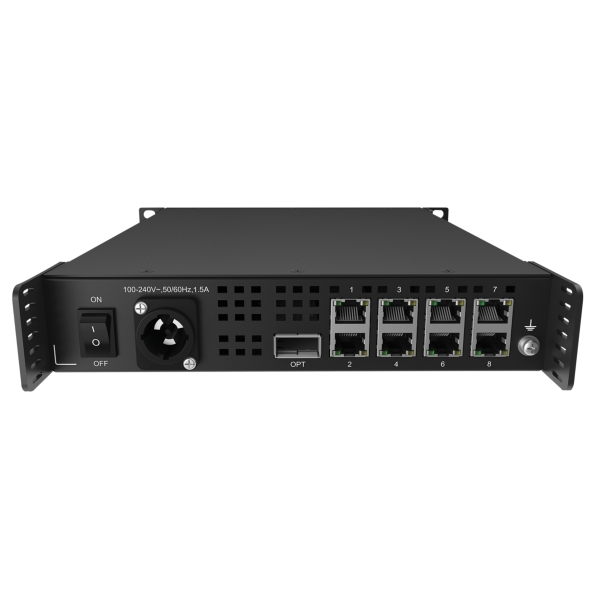

NovaStar CVT8-5G-M Multi Mode Fibre to 8x 5G Ethernet Converter

NovaStar CVT8-5G-M Multi Mode Fibre to 8x 5G Ethernet Converter Features

- 1x 40G optical Input
- 8x 5G Ethernet port
- 19-inch/ 1U Design
- Transmission distance up to 100 m
- Multi-mode

NovaStar CVT8-5G-M Multi Mode Fibre to 8x 5G Ethernet Converter Specifications

Outputs:
- Main Outputs: 8
- Ethernet Speed (LED Screen): 5 Gbit/s

Optical:
- SFP Slot Type: 40G
- SFP Slot Quantity: 1
- SFP Module Fibre Connector Type: LC
- SFP Module(s) Included: Yes
- Maximum Transmission Distance: 100 m
- Wavelength: 850 nm

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 33 W
- Power Connector In: PowerCON TRUE1
- Data Connector In: USB B
- Data Connector Out: RJ45

Mechanical Specifications:
- Dimensions (W x H x D):
  - Including Handles: 255 x 51 x 290 mm
  - Without Handles Handles: 217 x 44 x 266 mm
- Weight: 2.26 kg
- Rack Units: 1 U
- IP Rating: IP20 (indoor use only)
- Colour: Black

Thermal Specifications:
- Maximum Ambient Temperature: 55 °C
- Minimum Ambient Temperature: -20 °C
- Operating Humidity: 10-80 %rH

Further Product Information Below

NovaStar CVT8-5G Manual (PDF)

Please Note: This Item is to Order from NavaStar and is NON CANCELLABLE. If you require a lead time please contact us first before you place your order.

NovaStar CVT8-5G-M Multi Mode Fibre to 8x 5G Ethernet Converter Supplied With

- PowerCON TRUE1 cable
- USB-A - USB-B cable
- 19-inch Rack installation kit
