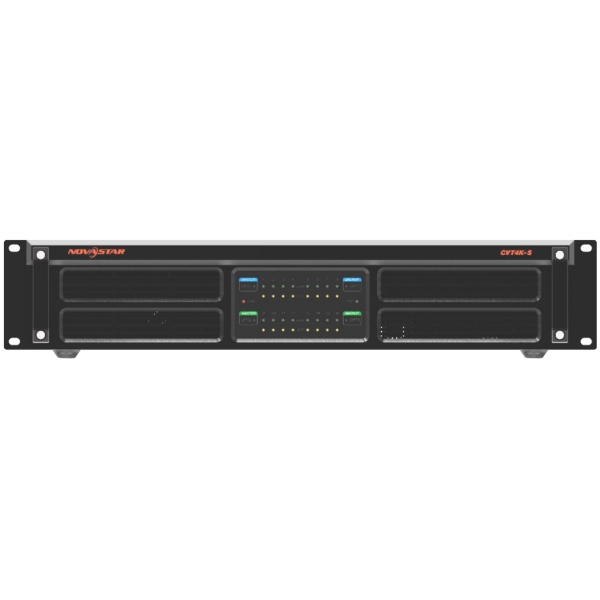

NovaStar CVT4K-S Fibre Convertor for NovaStar MCTRL4K, UHD & UHD Jr

NovaStar CVT4K-S Fibre Convertor for NovaStar MCTRL4K, UHD & UHD Jr Features

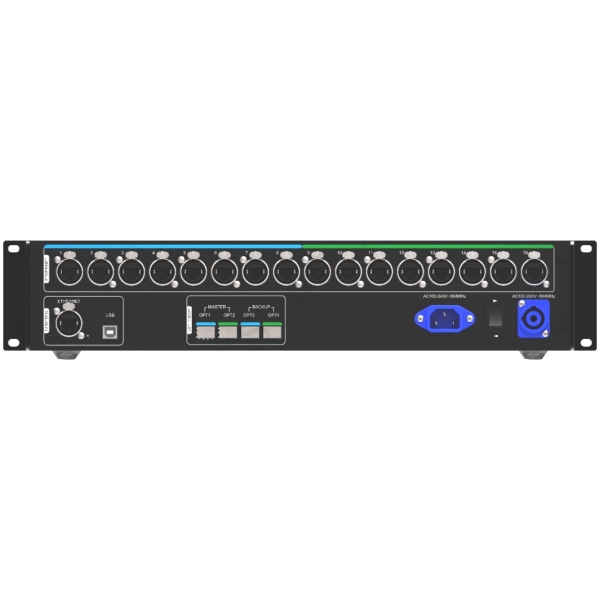

- 16x ethernet output ports
- 4x fibre SFP fibre input ports
- Dual redundant power supply
- Plug and play, no driver required
- Transmission distance up to 10 km

NovaStar CVT4K-S Fibre Convertor for NovaStar MCTRL4K, UHD & UHD Jr Specifications

Outputs:
- Main Outputs: 16

Optical:
- SFP Slot Type: 10G
- SFP Slot Quantity: 4
- SFP Module Fibre Connector Type: LC
- SFP Module(s) Included: Yes
- Fibre Mode: Single-mode
- Maximum Transmission Distance: 10000 m
- Wavelength: 1310 nm

Control and Programming:
- Control System: Novastar
- Port Mapping: Software Based

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 10 W
- Power Connector In: IEC, PowerCON Blue
- Data Connector: EtherCON In/Out
- Data Connector In: EtherCON, RJ45
- Data Connector Out: EtherCON, RJ45

Mechanical Specifications:
- Dimensions (W x H x D):
  - Including Handles: 483 x 96 x 386 mm
  - Without Handles: 445 x 89 x 308 mm
- Weight: 4.6 kg
- Flightcase Size: 19-inch
- Rack Units: 2 U
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Thermal Specifications:
- Maximum Ambient Temperature: 60 °C
- Minimum Ambient Temperature: -20 °C
- Minimum Operating Temperature: -20 °C
- Operating Humidity: 10-90 %rH

Further Product Information Below

NovaStar CVT4K-S Data Sheet (PDF)

NovaStar CVT4K-S Fibre Convertor for NovaStar MCTRL4K, UHD & UHD Jr Supplied With

- CAT-5 Cable
- IEC cable
- USB-A - USB-B cable
