NovaStar 40G Single Mode SFP Module

Name: NovaStar 40G Single Mode SFP Module
Brand: NovaStar
Price: 657.58 GBP
Availability: InStock

Price Each £547.98 (£657.58 Including VAT at 20%)

REF: JP108833

Quantity:

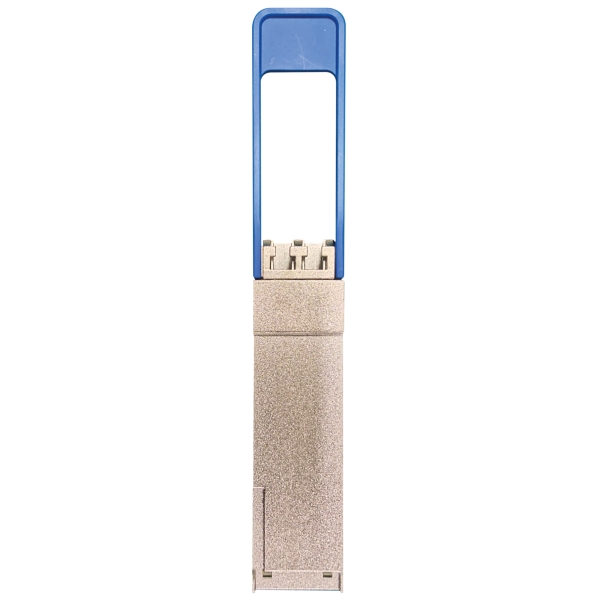

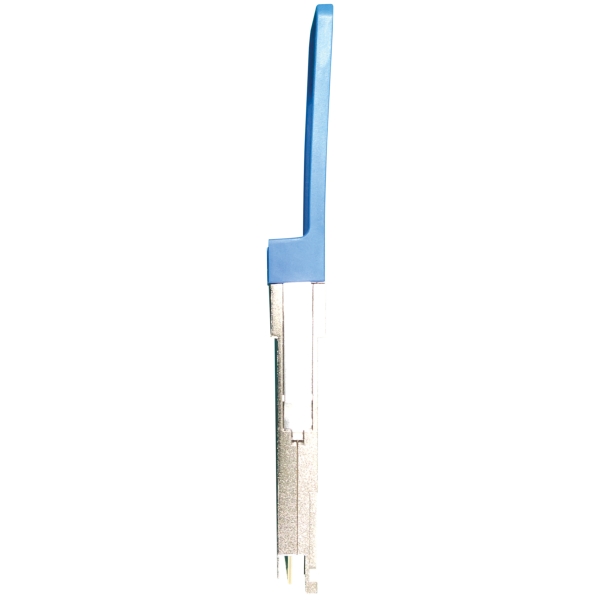

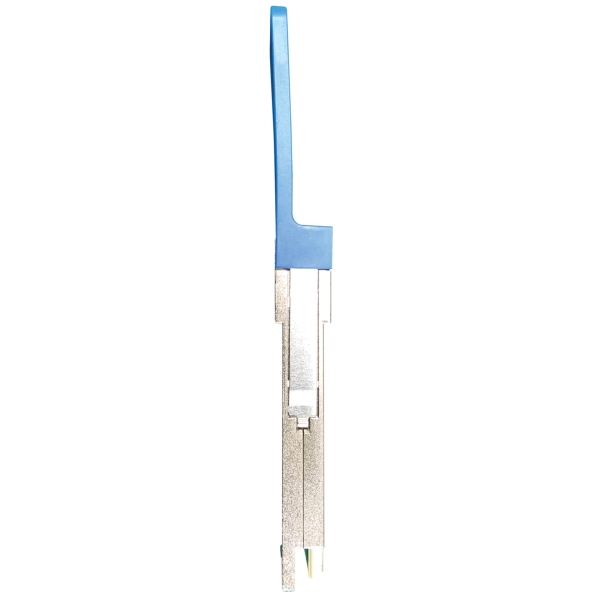

NovaStar 40G Single Mode SFP Module

The NovaStar 40G Single Mode SFP Module is designed for the Novastar 5GB platform and can be used with the Novastar CX series processors, such as the CX 40 and CX 80. It offers a higher bandwidth and allows for more pixels to be controlled. It is available in Single Mode and Multimode version. The 40G SFP Module is equipped with an LC connector and can be used with regular optical LC fibre cables.

Please Note: This Item is to Order from NavaStar and is NON CANCELLABLE. If you require a lead time please contact us first before you place your order.

Click Here for Printer Friendly Version

NovaStar 40G Single Mode SFP Module Features

- 40G SFP Module
- Single mode
- Transmission distance up to 10 km
- Hot swappable

NovaStar 40G Single Mode SFP Module Specifications

Optical:
- SFP Slot Type: 40G
- SFP Module Fibre Connector Type: LC
- Fibre Mode: Single-mode
- Maximum Transmission Distance: 10000 m
- Wavelength: 1310 nm

Electrical Specifications and Connections:
- Power Supply: 3,3 V DC
- Power Consumption: 3.5 W

Mechanical Specifications:
- Width (Including Handles): 19 mm
- Height (Including Handles): 12 mm
- Depth (Including Handles): 118 mm
- Depth (Without Handles): 73 mm
- Weight: 0.041 kg
- IP Rating: IP20 (indoor use only)

Thermal Specifications:
- Maximum Ambient Temperature: 70 °C

Please Note: This Item is to Order from NavaStar and is NON CANCELLABLE. If you require a lead time please contact us first before you place your order.
