Nexo PS15 R2 Replacement Parts

Nexo PS15 R2 Spare Parts. Full bill of materials (B.O.M) showing exploded view of speaker assembly broken down into its individual component parts. Each part is numbered numerically but also with its NEXO part number.

Nexo PS15 R2 Replacement Parts

Nexo PS15 R2 Replacement Parts

Nexo PS15 Replacement Parts - Below you will find each part listed separately with a drawing reference number that coincides with the exploded drawing.

1. Nexo 05EBPS15UL - PS15 R2 Left Empty Box for Nexo PS15 R2

1. Nexo 05EBPS15UL - PS15 R2 Left Empty Box for Nexo PS15 R2

Price Each £714.23 (£857.08 Including VAT at 20%)

1a. Nexo 05EBPS15UR- PS15 R2 Right Empty Box for Nexo PS15 R2

1a. Nexo 05EBPS15UR- PS15 R2 Right Empty Box for Nexo PS15 R2

Price Each £759.68 (£911.62 Including VAT at 20%)

2. Nexo 05VUNIM5 - UNIMERCO T-Nut M5 for Nexo PS15 R2

2. Nexo 05VUNIM5 - UNIMERCO T-Nut M5 for Nexo PS15 R2

Price per Pack (of 10) £4.64 (£5.57 Including VAT at 20%)

3. Nexo 05INSECRM5X13 - Wood Insert M5X13 for Nexo PS15 R2

3. Nexo 05INSECRM5X13 - Wood Insert M5X13 for Nexo PS15 R2

Price Each £4.64 (£5.57 Including VAT at 20%)

4. Nexo 05AMACCEXT-M10 - PS External Plate for Rigging for Nexo PS15 R2

4. Nexo 05AMACCEXT-M10 - PS External Plate for Rigging for Nexo PS15 R2

Price Each £28.75 (£34.50 Including VAT at 20%)

5. Nexo 05AMACCP8EXT-V2 - External Plate for Rigging for Nexo PS15 R2

5. Nexo 05AMACCP8EXT-V2 - External Plate for Rigging for Nexo PS15 R2

Price Each £25.04 (£30.05 Including VAT at 20%)

6. Nexo 05VXTCFX625N - Black Torx Flat Head Screw 6X25 for Nexo PS15 R2

6. Nexo 05VXTCFX625N - Black Torx Flat Head Screw 6X25 for Nexo PS15 R2

Price per Pack (of 10) £5.57 (£6.68 Including VAT at 20%)

7. Nexo 05VGRAF6 - Graf Nut M6 for Nexo PS15 R2

7. Nexo 05VGRAF6 - Graf Nut M6 for Nexo PS15 R2

Price per Pack (of 10) £7.42 (£8.90 Including VAT at 20%)

8. Nexo 05PATIN-WPS - PS15 R2 Skid Nexo UR - UL Version for Nexo PS15 R2

8. Nexo 05PATIN-WPS - PS15 R2 Skid Nexo UR - UL Version for Nexo PS15 R2

Price Each £6.49 (£7.79 Including VAT at 20%)

9. Nexo 05VXTCFX525N - Black Torx Flat Head Screw 5X25 for Nexo PS15 R2

9. Nexo 05VXTCFX525N - Black Torx Flat Head Screw 5X25 for Nexo PS15 R2

Price Per Pack (of 10) £6.49 (£7.79 Including VAT at 20%)

10. Nexo 05PS.15UC-V2 - PS15 R2 Complete Horn Nexo UR - UL Version for Nexo PS15 R2

10. Nexo 05PS.15UC-V2 - PS15 R2 Complete Horn Nexo UR - UL Version for Nexo PS15 R2

Price Each £381.79 (£458.15 Including VAT at 20%)

11. Nexo 05PAVPS15 - PS15 R2 Horn for Nexo PS15 R2

11. Nexo 05PAVPS15 - PS15 R2 Horn for Nexo PS15 R2

Price Each £64.93 (£77.92 Including VAT at 20%)

12. Nexo 05HPADE65-16 - HPADE65 HF Driver 16ohm for Nexo PS15 R2

12. Nexo 05HPADE65-16 - HPADE65 HF Driver 16ohm for Nexo PS15 R2

Price Each £301.27 (£361.52 Including VAT at 20%)

13. Nexo 05NH91-16R/K - HPADE65 Diaphragm for Nexo PS15 R2

13. Nexo 05NH91-16R/K - HPADE65 Diaphragm for Nexo PS15 R2

Price Each £175.31 (£210.37 Including VAT at 20%)

14. Nexo 05JNEOHMPS15V2 - PS15 Horn Gasket for Nexo PS15 R2

14. Nexo 05JNEOHMPS15V2 - PS15 Horn Gasket for Nexo PS15 R2

Price Each £2.78 (£3.34 Including VAT at 20%)

15. Nexo 05VRP5.2-16N - Black Polyamid Washer 5.2x16 for Nexo PS15 R2

15. Nexo 05VRP5.2-16N - Black Polyamid Washer 5.2x16 for Nexo PS15 R2

Price Per Pack (of 10) £4.64 (£5.57 Including VAT at 20%)

16. Nexo 05VRX520N - Black Washer 5x20 Inox for Nexo PS15 R2

16. Nexo 05VRX520N - Black Washer 5x20 Inox for Nexo PS15 R2

Price per Pack (of 10) £2.78 (£3.34 Including VAT at 20%)

17. Nexo 05VXTCBX535N - Black Torx Button Head Screw 5x25 for Nexo PS15 R2

17. Nexo 05VXTCBX535N - Black Torx Button Head Screw 5x25 for Nexo PS15 R2

Price per Pack (of 10) £4.64 (£5.57 Including VAT at 20%)

18. Nexo 05HPB15-NF - Bass Speaker 15-Inch 8 ohm for Nexo PS15 R2

18. Nexo 05HPB15-NF - Bass Speaker 15-Inch 8 ohm for Nexo PS15 R2

Price Each £462.30 (£554.76 Including VAT at 20%)

19. Nexo 05HPB15-NFR/K - 05HPB15-NF Recone Kit for Nexo PS15 R2

19. Nexo 05HPB15-NFR/K - 05HPB15-NF Recone Kit for Nexo PS15 R2

Price Each £139.14 (£166.97 Including VAT at 20%)

20. Nexo 05JNEOHPB15-2 - Joint Bass 15-Inch for Nexo PS15 R2

20. Nexo 05JNEOHPB15-2 - Joint Bass 15-Inch for Nexo PS15 R2

Price Each £7.42 (£8.90 Including VAT at 20%)

21. Nexo 05VXTCBX535N - Black Torx Button Head Screw 5x35 for Nexo PS15 R2

21. Nexo 05VXTCBX535N - Black Torx Button Head Screw 5x35 for Nexo PS15 R2

Price per Pack (of 10) £4.64 (£5.57 Including VAT at 20%)

22. Nexo 05RAIDPS15V2 - PS15 Spacer Grill Nexo UR - UL Version for Nexo PS15 R2

22. Nexo 05RAIDPS15V2 - PS15 Spacer Grill Nexo UR - UL Version for Nexo PS15 R2

Price Each £15.77 (£18.92 Including VAT at 20%)

23. Nexo 05VRND5.3 - Nylon Washer 5.3 x 10 for Nexo PS15 R2

23. Nexo 05VRND5.3 - Nylon Washer 5.3 x 10 for Nexo PS15 R2

Price Per Pack (of 10) £2.78 (£3.34 Including VAT at 20%)

24. Nexo 05VXTCBX540N - Black Torx Button Head Screw 5x40 for Nexo PS15 R2

24. Nexo 05VXTCBX540N - Black Torx Button Head Screw 5x40 for Nexo PS15 R2

Price Per Pack (of 10) £7.42 (£8.90 Including VAT at 20%)

25. Nexo 05PS.15UA-V2 - PS15 R2 complete Grill Nexo UR - UL Version for Nexo PS15 R2

25. Nexo 05PS.15UA-V2 - PS15 R2 complete Grill Nexo UR - UL Version for Nexo PS15 R2

Price Each £149.34 (£179.21 Including VAT at 20%)

26. Nexo 05VXTCFX525N - Black Torx Flat Head Screw 5x25 for Nexo PS15 R2

26. Nexo 05VXTCFX525N - Black Torx Flat Head Screw 5x25 for Nexo PS15 R2

Price Per Pack (of 10) £6.49 (£7.79 Including VAT at 20%)

27. Nexo 05VRX5FN - Black Flat Washer 90 Degree for Nexo PS15 R2 Nexo Pack of 10

27. Nexo 05VRX5FN - Black Flat Washer 90 Degree for Nexo PS15 R2 Nexo Pack of 10

Price Each £12.99 (£15.59 Including VAT at 20%)

28. Nexo 05MBULPEPS15V2 - PS15 R2 Foam Grill Nexo UR - UL Version for Nexo PS15 R2

28. Nexo 05MBULPEPS15V2 - PS15 R2 Foam Grill Nexo UR - UL Version for Nexo PS15 R2

Price Each £21.77 (£26.12 Including VAT at 20%)

29. Nexo 05GEOS12-F - GEOS12 Internal Wiring for Nexo PS15 R2

29. Nexo 05GEOS12-F - GEOS12 Internal Wiring for Nexo PS15 R2

Price Each £25.04 (£30.05 Including VAT at 20%)

30. Nexo 05VXTCBX525N - Black Torx Button Head Screw 5X25 for Nexo PS15 R2

30. Nexo 05VXTCBX525N - Black Torx Button Head Screw 5X25 for Nexo PS15 R2

Price per Pack (of 10) £6.49 (£7.79 Including VAT at 20%)

31. Nexo 05PS.15FPC-V2 - PS15 R2 Complete Passive Filter Nexo UR - UL Version for Nexo PS15 R2

31. Nexo 05PS.15FPC-V2 - PS15 R2 Complete Passive Filter Nexo UR - UL Version for Nexo PS15 R2

Price Each £242.10 (£290.52 Including VAT at 20%)

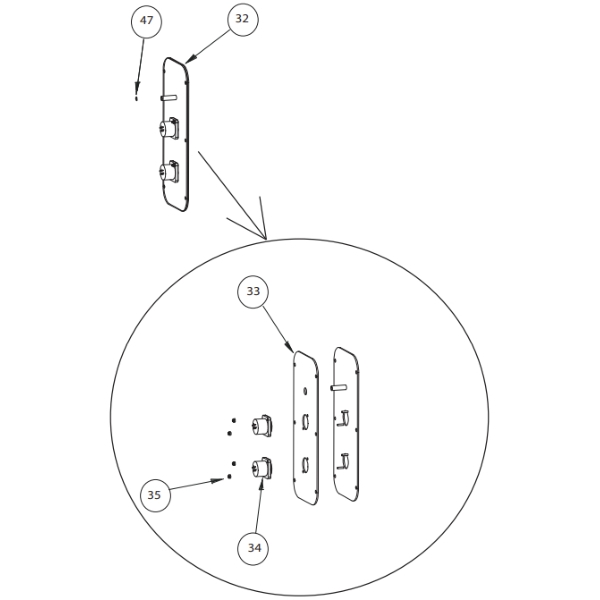

32. Nexo 05PS.15FPA-V2 - PS15 R2 Complete Connection Plate Nexo UR - UL Version for Nexo PS15 R2

32. Nexo 05PS.15FPA-V2 - PS15 R2 Complete Connection Plate Nexo UR - UL Version for Nexo PS15 R2

Price Each £48.23 (£57.88 Including VAT at 20%)

33. Nexo 05JNEOTPS15 - PS15 R2 Gasket for Connection Plate Nexo UR - UL Version for Nexo PS15 R2

33. Nexo 05JNEOTPS15 - PS15 R2 Gasket for Connection Plate Nexo UR - UL Version for Nexo PS15 R2

Price Each £2.78 (£3.34 Including VAT at 20%)

34. Nexo 05CNXNL4MDV - Speakon NL4MDV for Nexo PS15 R2

34. Nexo 05CNXNL4MDV - Speakon NL4MDV for Nexo PS15 R2

Price Each £7.42 (£8.90 Including VAT at 20%)

35. Nexo 05VNYLST2.5 - Nuts with Polyamid Insert M2.5 for Nexo PS15 R2

35. Nexo 05VNYLST2.5 - Nuts with Polyamid Insert M2.5 for Nexo PS15 R2

Price per Pack (of 10) £3.71 (£4.45 Including VAT at 20%)

37. Nexo 05FCNP25 - Capacitor 25 uF MKP 5% for Nexo PS15 R2

37. Nexo 05FCNP25 - Capacitor 25 uF MKP 5% for Nexo PS15 R2

Price Each £20.41 (£24.49 Including VAT at 20%)

38. Nexo 05FCNP3.9 - Capacitor 3,9 uF MKP 5% for Nexo PS15 R2

38. Nexo 05FCNP3.9 - Capacitor 3,9 uF MKP 5% for Nexo PS15 R2

Price Each £8.35 (£10.02 Including VAT at 20%)

39. Nexo 05C1225621-164/001 - Male Connector 721-164/0001-000 for Nexo PS15 R2

39. Nexo 05C1225621-164/001 - Male Connector 721-164/0001-000 for Nexo PS15 R2

Price Each £3.71 (£4.45 Including VAT at 20%)

40. Nexo 05C1225622-134 - Female Connector 722-134 for Nexo PS15 R2

40. Nexo 05C1225622-134 - Female Connector 722-134 for Nexo PS15 R2

Price Each £5.57 (£6.68 Including VAT at 20%)

41. Nexo 05FS2.00MH0.47R - Coil 2mH for Nexo PS15 R2

41. Nexo 05FS2.00MH0.47R - Coil 2mH for Nexo PS15 R2

Price Each £17.62 (£21.14 Including VAT at 20%)

42. Nexo 05FS0.85MHD42 - Coil 0.85 mH for Nexo PS15 R2

42. Nexo 05FS0.85MHD42 - Coil 0.85 mH for Nexo PS15 R2

Price Each £12.06 (£14.47 Including VAT at 20%)

43. Nexo 05PLSW500RXEF - Polyswitch RXE375 for Nexo PS15 R2

43. Nexo 05PLSW500RXEF - Polyswitch RXE375 for Nexo PS15 R2

Price Each £4.64 (£5.57 Including VAT at 20%)

44. Nexo 05VRIVNYL5X8 - Nylon Rivet for Nexo PS15 R2

44. Nexo 05VRIVNYL5X8 - Nylon Rivet for Nexo PS15 R2

Price per Pack (of 10) £5.57 (£6.68 Including VAT at 20%)

46. Nexo 05VRA630Z - Washer 6x30 for Nexo PS15 R2

46. Nexo 05VRA630Z - Washer 6x30 for Nexo PS15 R2

Price per Pack (of 10) £2.78 (£3.34 Including VAT at 20%)

47. Nexo 05VRA510ZN - Black Washer 5x10 for Nexo PS15 R2

47. Nexo 05VRA510ZN - Black Washer 5x10 for Nexo PS15 R2

Price per Pack (of 10) £2.78 (£3.34 Including VAT at 20%)
