Nexo ePS8 8-Inch 2-Way Passive Install Speaker, 570W @ 8 Ohms - Black

Name: Nexo ePS8 8-Inch 2-Way Passive Install Speaker, 570W @ 8 Ohms - Black
Brand: Nexo
Price: 817.84 GBP
Availability: InStock

Price Each £681.53 (£817.84 Including VAT at 20%)

REF: JP107587

Quantity:

Nexo ePS8 8-Inch 2-Way Passive Install Speaker, 570W @ 8 Ohms - Black

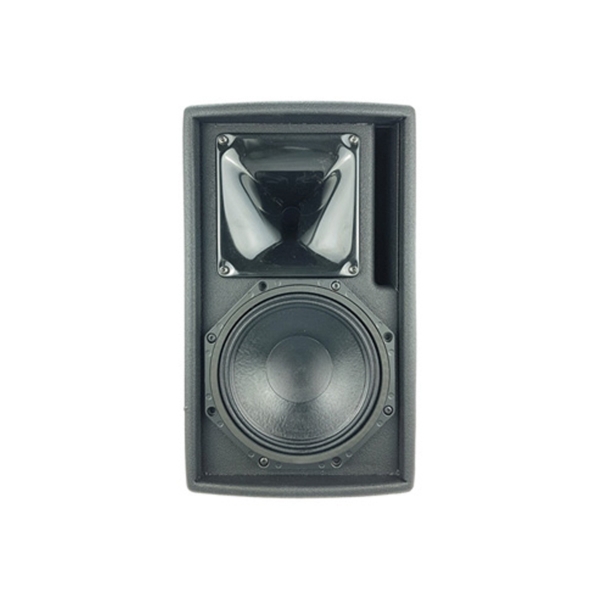

The Nexo ePS8 8-Inch 2-Way Passive Install Speaker combines a high excursion 8-inch LF driver with a 1.4-inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood. Achieving a peak SPL of 128dB with a frequency range of 80Hz to 20kHz, the ePS8 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

Click Here for Printer Friendly Version

Nexo ePS8 8-Inch 2-Way Passive Install Speaker Features

- High power (128 dB peak) point source loudspeaker for fixed installation
- Lightweight (8.1kg / 17.9lbs) design
- Robust 15 mm Birch plywood enclosure
- NEXO's Asymmetrical Dispersion Constant Directivity horn design ("PS" Horn), rotatable
- IP55 protection level
- Comprehensive range of accessories for deploying in a wide variety of fixed installation applications

Nexo ePS8 8-Inch 2-Way Passive Install Speaker Specifications

- Frequency Response @-6 dB: 80 Hz to 20 kHz
- Sensitivity 1W@1m: 100 dB SPL Nominal
- Peak SPL@1m: 128 dB
- Vertical Dispersion: +25°/-30°
- Horizontal Dispersion: 50° to 100° Asymmetrical
- Crossover Frequency: 80 Hz, 120 Hz
- Nominal Impedance: 8 Ω
- Recommended Power: 350 to 570 Watts / 8 Ω
- Number of ways: 2 ways passive
- Drivers:
  - HF: 1.4-inch diaphragm 8 Ω HF driver on an Asymmetrical Dispersion ("PS") horn
  - LF: 8-inch 8 Ω long excursion neodymium driver
- Connectors: 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
- Compatible cables section: Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section
- Compatible cables outside diameter: Cable with maximum outside diameter of 11 mm
- Rigging points: 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
- Material: 15 mm thick birch plywood body and galvanized grille
- Front Finish: UV & Fire resistant acoustic fabric
- Operating temperature range: 0°C - 40 °C (32° F - 104° F)
- Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
- IP Rating: IP55
- Dimensions (W x H x D): 250 x 423 x 250 mm (9.8 x 16.7 x 8.9 inches)
- Weight: 8.1 kg (17.9 lbs)

System Operation:
- Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: Up to 3 x ePS8 per channel
- Optional powering solution:
  - DTDcontroller + DTDAMP4x0.7 : Up to 2 x ePS8 per channel
  - DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS8 per channel
  - NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS8 per channel
  - NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS8 per channel

Further Product Information Below

Nexo ePS8 Manual (PDF)

Nexo ePS8 Data Sheet (PDF)

Nexo ePS Series Brochure (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Nexo ePS8 8-Inch 2-Way Passive Install Speaker, 570W @ 8 Ohms - Black

Related products:

Nexo ePS8 8-Inch 2-Way Passive Install Speaker, 570W @ 8 Ohms - White

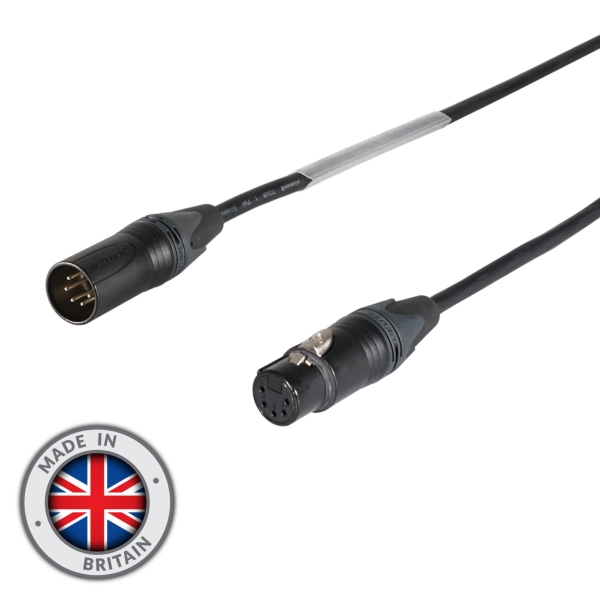

elumen8 10m 5-Pin Neutrik Male XLR - 5-Pin Female XLR DMX Cable

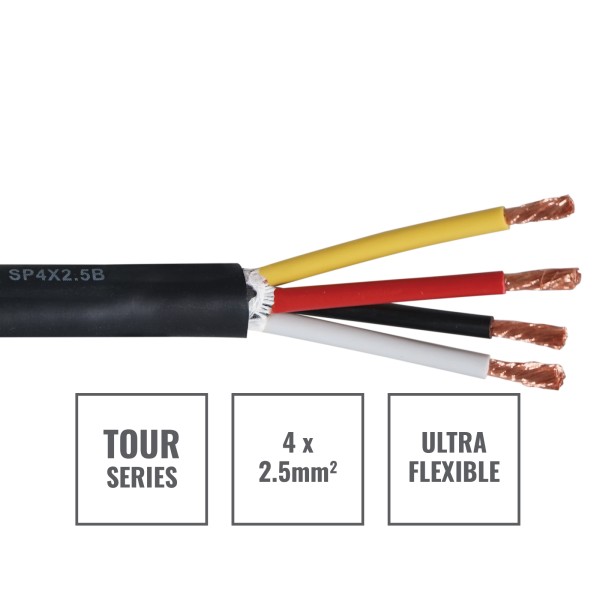

elumen8 TOUR 4 Core 2.5mm Speaker Cable (SP4X2.5B) - 100m Drum, Black
