Nexo ePS10 10-Inch 2-Way Passive Install Speaker, 800W @ 8 Ohms - Black

Name: Nexo ePS10 10-Inch 2-Way Passive Install Speaker, 800W @ 8 Ohms - Black
Brand: Nexo
Price: 959.22 GBP
Availability: InStock

Price Each £799.35 (£959.22 Including VAT at 20%)

REF: JP107589

Quantity:

Nexo ePS10 10-Inch 2-Way Passive Install Speaker, 800W @ 8 Ohms - Black

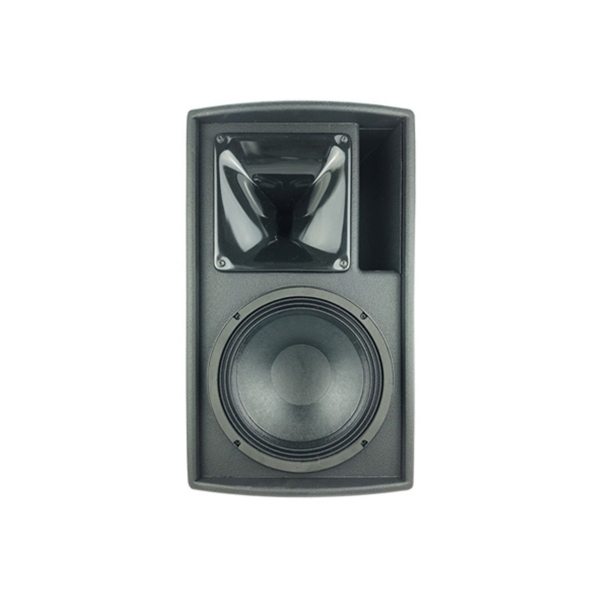

The Nexo ePS10 10-Inch 2-Way Passive Install Speaker combines a high excursion 10-inch LF driver with a 1.4- inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood. Achieving a peak SPL of 130dB with a frequency range of 70Hz to 20kHz, the ePS10 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

Click Here for Printer Friendly Version

Nexo ePS10 10-Inch 2-Way Passive Install Speaker Features

- High power (130 dB peak) point source loudspeaker for fixed installation
- Lightweight (14.8.kg / 32.6lbs) design
- Robust 15 mm Birch plywood enclosure
- NEXO's Asymmetrical Dispersion Constant Directivity horn design ("PS" Horn), rotatable
- IP55 protection level
- Comprehensive range of accessories for deploying in a wide variety of fixed installation applications

Nexo ePS10 10-Inch 2-Way Passive Install Speaker Specifications

- Frequency Response @-6 dB: 70 Hz to 20 kHz
- Sensitivity 1W@1m: 101 dB SPL Nominal
- Peak SPL@1m: 130 dB
- Vertical Dispersion: +25°/-30°
- Horizontal Dispersion: 50° to 100° Asymmetrical
- Crossover Frequency: 70 Hz, 120 Hz
- Nominal Impedance: 8 Ω
- Recommended Power: 500 to 800 Watts / 8 Ω
- Number of ways: 2 ways passive
- Drivers:
  - HF: 1.4-inch diaphragm 8 Ω HF driver on an Asymmetrical Dispersion ("PS") horn
  - LF: 10-inch 8 Ω long excursion neodymium driver
- Connectors: 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
- Compatible cables section: Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section
- Compatible cables outside diameter: Cable with maximum outside diameter of 11 mm
- Rigging points: 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
- Material: 15 mm thick birch plywood body and galvanized grille
- Front Finish: UV & Fire resistant acoustic fabric
- Operating temperature range: 0°C - 40 °C (32° F - 104° F)
- Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
- IP Rating: IP55
- Dimensions (W x H x D): 316 x 431 x 316 mm (12.4 x 20.9 x 11.2 inches)
- Weight: 14.8 kg (32.6 lbs)

System Operation:
- Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: 1 x ePS10 per channel
- Optional powering solution:
  - DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS10 per channel
  - NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS10 per channel
  - NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS10 per channel

Further Product Information Below

Nexo ePS10 Manual (PDF)

Nexo ePS10 Data Sheet (PDF)

Nexo ePS Series Brochure (PDF)
