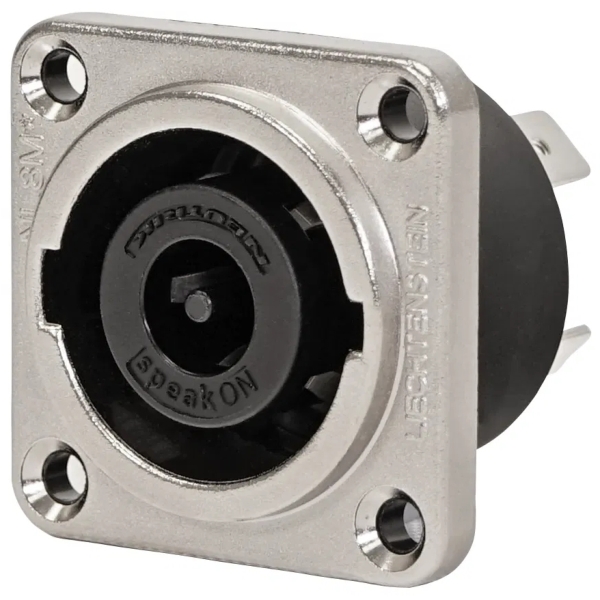

Neutrik NLT8MPXX 8-Pole SpeakON Chassis Socket

Neutrik NLT8MPXX 8-Pole SpeakON Chassis Socket Features
- Manufacturer's Part Code: NLT8MPXX
- 8-pole male speakON chassis connector for professional audio applications
- Locking 30A / 250V AC-rated connector suitable for amplifier-to-loudspeaker connections
- Rugged nickel metal housing for enhanced durability
- Quick Lock system ensures easy and secure connections
- Compatible with all Neutrik speakON 8-pole connectors for seamless integration

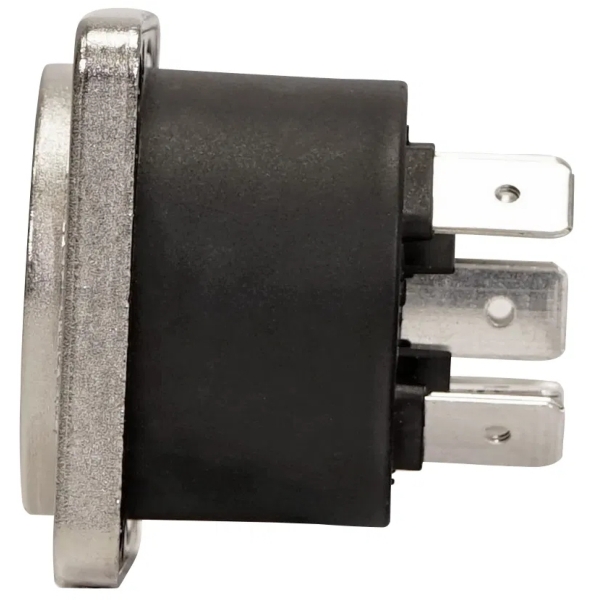

- ¼-inch flat tab termination for reliable and straightforward assembly
- Ergonomic design with slip-proof two-component molded housing for comfortable handling
- Superior Neutrik quality standard ensures exceptional robustness and reliability
- Enhanced kink protection through a two-component bushing design
- Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm

Neutrik NLT8MPXX 8-Pole SpeakON Chassis Socket Specifications
- Contact resistance: < 2mΩ
- Dielectric strength: 1.5kVac
- Insulation resistance: 0.1GΩ (after damp heat)
- Rated current per contact: 30A RMS continuous (IEC 61984)
- Rated voltage: 250V AC
- Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC).
- Lifetime: 5000 mating cycles
- Termination: ¼-inch flat tabs
