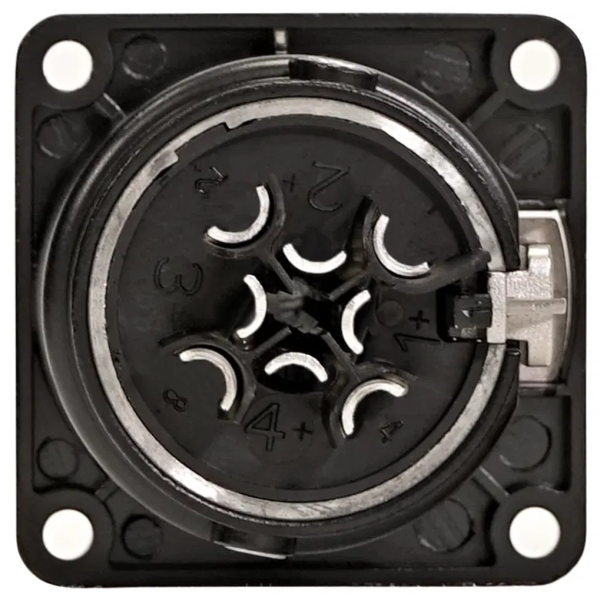

Neutrik NLT8FPXX-BAG 8-Pole SpeakON Chassis Socket

Neutrik NLT8FPXX-BAG 8-Pole SpeakON Chassis Socket Features
- Manufacturer's Part Code: NLT8FPXX-BAG
- 8-pole female speakON chassis connector for professional audio applications
- Locking 30A / 250V AC-rated connector ideal for amplifier-to-loudspeaker connections
- Rugged black-chrome metal housing ensures durability in demanding environments
- Quick Lock system facilitates easy and secure connections
- Compatible with all Neutrik speakON 8-pole connectors for seamless integration
- Solder contact termination for reliable and straightforward assembly
- Ergonomic design with slip-proof two-component molded housing for comfortable handling
- Superior Neutrik quality standard ensures exceptional robustness and reliability
- Enhanced kink protection through a two-component bushing design
- Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm

Neutrik NLT8FPXX-BAG 8-Pole SpeakON Chassis Socket Specifications
- Contact resistance: < 2mΩ
- Dielectric strength: 1.5kVac
- Insulation resistance: 0.1GΩ (after damp heat)
- Rated current per contact: 30A RMS continuous (IEC 61984)
- Rated voltage: 250V AC
- Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC).
- Lifetime: 5000 mating cycles
- Wire size: 1.5mm² - 6mm² (10 AWG)
- Termination: Solder contacts
- Locking device: Quick Lock
- Mounting direction: Front mounting
- Chassis shape: Square G-size flange
- Layout: Four thru holes
- Contact plating: Silver (Ag)
- Contacts: Copper alloy
- Shell: Zinc die-cast, black chrome plated
- Insert: Polyamide (PA 6.6)
- Temperature range: -30°C to +80°C
- Flammability: UL 94 V-0
- Protection class: IP50 (mated condition)
- Solderability: Complies with IEC 68-2-20
