Neutrik EtherCON Cable Connector RJ45 NE8MX6

Name: Neutrik EtherCON Cable Connector RJ45 NE8MX6
Brand: Neutrik
SKU: 7613187009235
Price: 15.38 GBP
Availability: InStock

Price Each £12.82 (£15.38 Including VAT at 20%)

REF: JP105916

Quantity:

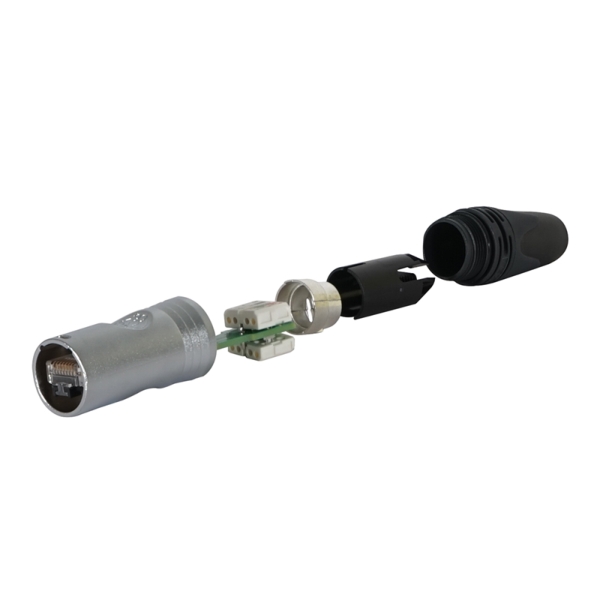

Neutrik EtherCON Cable Connector RJ45 NE8MX6, A nickel plated EtherCON CAT6A cable connector self-termination, for insulation diameter ≤1.1mm. The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7mm to 9.5mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded). Please note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. If the insulation diameter is ≤1.1mm please refer to CONN273.

Click Here for Printer Friendly Version

EtherCON Cable Connector RJ45 NE8MX6 Features

- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2PoE++ compliant according to 802.3bt Type4
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing EtherCON CAT5 range
- Unique Neutrik chuck-type strain relief

EtherCON Cable Connector RJ45 NE8MX6 Specifications

- Dielectric strength: 1kVdc
- Insulation resistance: > 0.5GO
- Rated current per contact: 1.5A
- Transmission performance: CAT6A, acc. TIA/EIA rating, CAT6A, acc. IEC/ISO/EN rating
- Power over Ethernet: PoE++ acc. IEEE 802.3bt
- Cable overall diameter: 7.0-9.5mm
- Insulation diameter: 1.1-1.6mm
- Protection class: IP65 (in combination with NE8FDX-*6-W)
- Temperature range: -40°C to +70°C

Further Product Information Below

Assembly Guide

Certification

Test Report
