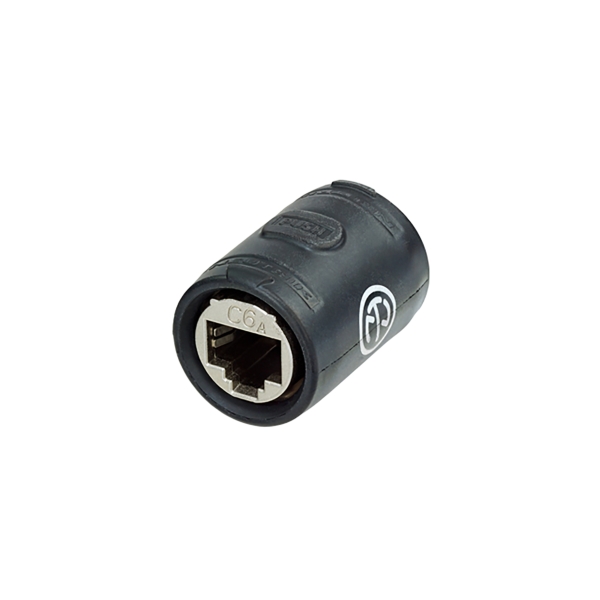

Neutrik EtherCON RJ45 CAT6A FeedThrough Coupler NE8FFX6-W

Name: Neutrik EtherCON RJ45 CAT6A FeedThrough Coupler NE8FFX6-W
Brand: Neutrik
SKU: JP105915
Price: 40.14 GBP
Availability: InStock

Price Each £33.45 (£40.14 Including VAT at 20%)

REF: JP105915

Quantity:

Neutrik EtherCON RJ45 CAT6A FeedThrough Coupler NE8FFX6-W, The NE8FFX6-W adapters are problem solvers for various intermating problems for professional and semi-professional applications. The ruggedized CAT6A coupler holds compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2IP65 protected when mated with NE8MX6* Accommodates standard RJ45 plug.

Click Here for Printer Friendly Version

EtherCON RJ45 CAT6A FeedThrough Coupler NE8FFX6-W Features

- Revolutionary small form factor
- The adapter offers the million-fold proven robust latch lock system
- Rubber (EPDM) outer shell

EtherCON RJ45 CAT6A FeedThrough Coupler NE8FFX6-W Specifications

- Contact resistance: < 200mΩ
- Dielectric strength: >1.5kVdc
- Insulation resistance: > 0.5GΩ
- Rated current per contact: 1.5A
- Transmission performance: CAT6A, acc. TIA/EIA rating, Class EA, acc. IEC/ISO/EN rating
- Power over Ethernet: PoE+ acc. IEEE 802.3at

Further Product Information Below

Neutrik NE8FFX6-W Technical Drawing (PDF)

Neutrik Brochure
