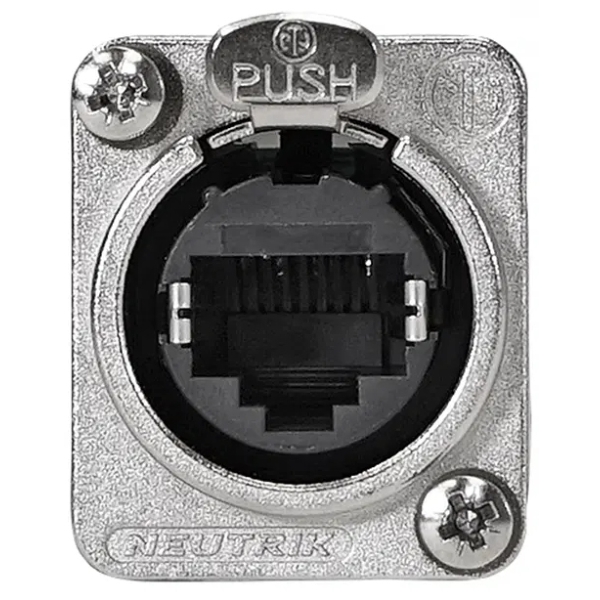

Neutrik NE8FDV-YK etherCON IDC Punch Down Chassis Connector

Name: Neutrik NE8FDV-YK etherCON IDC Punch Down Chassis Connector
Brand: Neutrik
Price: 12.95 GBP
Availability: InStock

Price Each £10.79 (£12.95 Including VAT at 20%)

REF: JP110677

Quantity:

Neutrik NE8FDV-YK etherCON IDC Punch Down Chassis Connector

The Neutrik NE8FDV-YK etherCON IDC Punch Down Chassis Connector is designed for secure, high-performance RJ45 connections in professional audio, video, and industrial applications. These connectors feature robust metal housings for durability and are compatible with standard Ethernet cables. The NE8FDP offers solder terminals for a straightforward connection, while the NE8FDV-YK and NE8FDV-YK-B models feature IDC (insulation displacement contact) terminals for quick and reliable tool-free assembly. With their D-size panel-mount compatibility and shielding for EMI protection, these connectors provide versatile solutions for fixed installations, touring rigs, and demanding setups.

Click Here for Printer Friendly Version

Neutrik NE8FDV-YK etherCON IDC Punch Down Chassis Connector Features
- Robust Construction: Metal housing provides durability for rigorous use
- Efficient Installation: IDC punch-down terminals allow for quick and reliable wiring
- Secure Mating: Latch lock system ensures a stable connection with RJ45 plugs
- Standards Compliance: Meets CAT5e/Class D according to TIA/EIA 568C and ISO/IEC 11801 specifications

Neutrik NE8FDV-YK etherCON IDC Punch Down Chassis Connector Specifications
- Contact resistance: < 50 mΩ
- Dielectric strength: 1 kV DC
- Insulation resistance: 0.5 GΩ
- Rated current per contact: 1.5 A
- Rated voltage: ≤ 57 V
- Transmission performance: CAT5e according to TIA/EIA 568C and ISO/IEC 11801 standards
- Wire size: 0.14 - 0.5 mm² (26 - 20 AWG)
- Panel thickness: Max. 4 mm
- Temperature range: -30 °C to +80 °C
