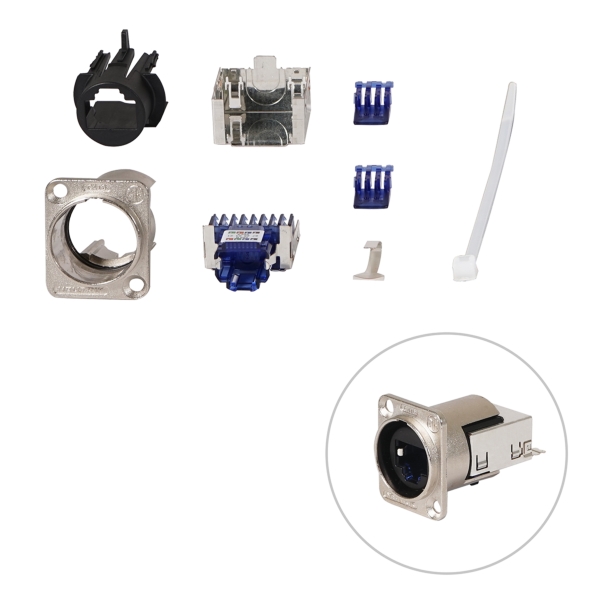

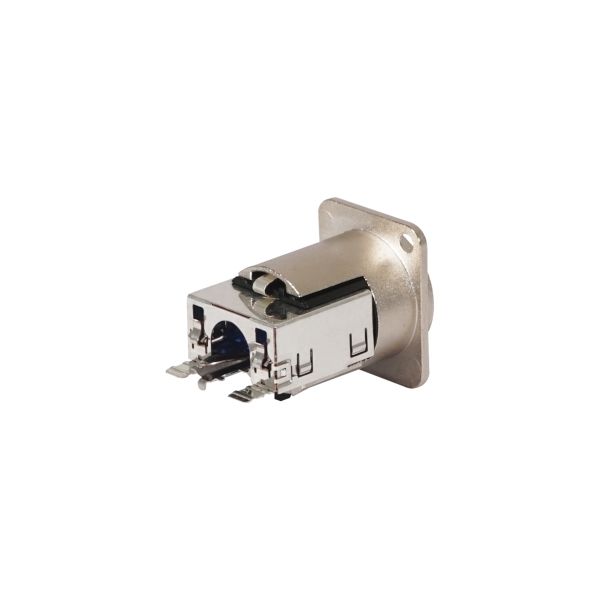

Neutrik EtherCON CAT6 IDC Panel Connector (NE8FDY-C6)

Name: Neutrik EtherCON CAT6 IDC Panel Connector (NE8FDY-C6)
Brand: Neutrik
SKU: 0702338066191
Price: 28.58 GBP
Availability: InStock

Price Each £23.82 (£28.58 Including VAT at 20%)

REF: JP105200

Quantity:

Neutrik EtherCON CAT6 IDC Panel Connector (NE8FDY-C6), The EtherCON CAT6 D-shape panel connectors with metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast. Attention! Inter-mates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connects. Not compatible with the EtherCON cable connector carriers NE8MC* and the CAT6A cable connectors NE8MX6*.

Click Here for Printer Friendly Version

EtherCON CAT6 IDC Panel Connector (NE8FDY-C6) Features

- CAT6 compliant - data rate up to 10 GBit/sCAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ground lead jumper on panel connector with selectable grounding option
- Gas-tight IDC termination without tool

Further Product Information Below

Assembly Guide

Neutrik NE8FDY-C6 Certification (PDF)

Neutrik NE8FDY-C6 Technical Drawings (PDF)
