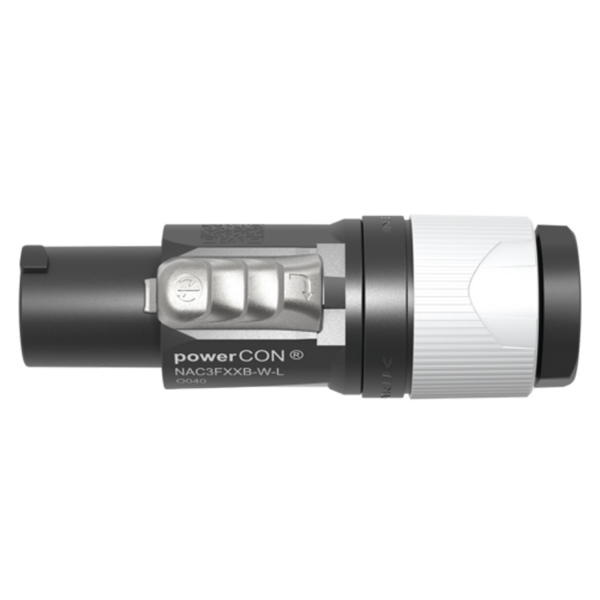

Neutrik NAC3FXXB-W-L-D PowerCON FXX B-type Cable Connector 10mm to 16mm cables (Pack of 100)

Neutrik NAC3FXXB-W-L-D PowerCON FXX B-type Cable Connector for 10mm to 16mm cables (Pack of 100) Features

- Disassembled pack of 100
- Manufacturers part code: NAC3FXXB-W-L-D
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Locking 20A / 250V AC appliance coupler
- 3 contacts for line, neutral and premating safety ground
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
- Ergonomic design with slip-proof two-component moulded housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Improved kink protection by two-component bushing
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10mm to 16mm

Neutrik NAC3FXXB-W-L-D PowerCON FXX B-type Cable Connector for 10mm to 16mm cables (Pack of 100) Specifications

- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
- Contact resistance: ≤2mΩs
- Dielectric strength: >3kVac (after mating cycles)
- Insulation resistance: >10GΩs (initially)
- Cable O.D: 10-16 mm
- Wire size: 1.5-2.5 mm²
- Temperature range: -33°C to +80°C
- Protection class: IP20
