Neutrik NC5MX1-TOP 5-Pin Male Cable Connector - IP65, 5-8mm

Name: Neutrik NC5MX1-TOP 5-Pin Male Cable Connector - IP65, 5-8mm
Brand: Neutrik
Price: 14.84 GBP
Availability: InStock

Price Each £12.37 (£14.84 Including VAT at 20%)

REF: JP110681

Quantity:

Neutrik NC5MX1-TOP 5-Pin Male Cable Connector - IP65, 5-8mm

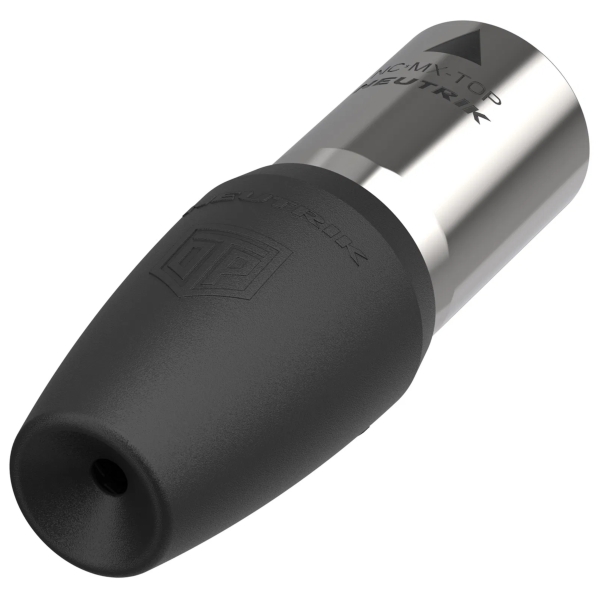

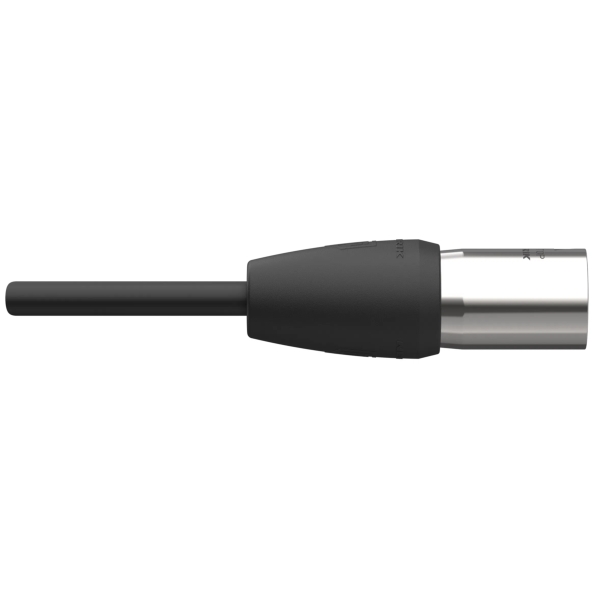

The Neutrik NC5MX1-TOP 5-Pin Male Cable Connector is a 5-pole male XLR cable connector designed for demanding outdoor applications. As part of the True Outdoor Protection (TOP) series, it offers IP65-rated protection when mated with compatible connectors, ensuring reliable performance in harsh environments. This connector is ideal for professional audio and lighting setups requiring durable and weather-resistant connections.

Click Here for Printer Friendly Version

Neutrik NC5MX1-TOP 5-Pin Male Cable Connector Features
- True Outdoor Protection (TOP): IP65-rated when mated with compatible connectors
- Durable stainless steel shell for long-lasting durability
- UV-resistant materials withstand prolonged sun exposure
- Gold-plated contacts for optimal conductivity and corrosion resistance
- Chuck-type strain relief system for secure cable retention

Neutrik NC5MX1-TOP 5-Pin Male Cable Connector Specifications
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 7.5 A
- Rated voltage: < 50 V
- Cable outer diameter compatibility: 5.0 - 8.0 mm
- Operating temperature range: -30 °C to +80 °C
- Mating cycles: > 1000

Further Product Information Below

Neutrik NC5MX1-TOP Technical Drawing (PDF)
