MiPro ACT-58T Digital Body Pack Transmitter - 5.8 GHz

MiPro ACT-58T Digital Body Pack Transmitter Features

- Miniature, sturdy plastic compact housing design for easy to wear. An adjustable belt clip allows wearing the transmitter in the up or down position
- Unique battery cover allows easy access to operate buttons and the lock device prevents accidental operation
- On top of the housing is equipped with an antenna, mini XLR connector, mute button and a remote-control mute jack
- World's first ACT function provides precise and rapid frequency sync to the receiver
- The mini XLR connector accepts either a screw-lock or a TA4F quick-lock plug

MiPro ACT-58T Digital Body Pack Transmitter Specifications

- Frequency Range: ISM 5.8 GHz
- Modulation Type: Digital
- RF Output Power: 20 mW (country dependent)
- Compatible Lavalier Microphones:
  - MiPro MU-53L
  - MiPro MU-55L
- Compatible Headworn Microphones:
  - MiPro MU-13
  - MiPro MU-23
  - MiPro MU-210

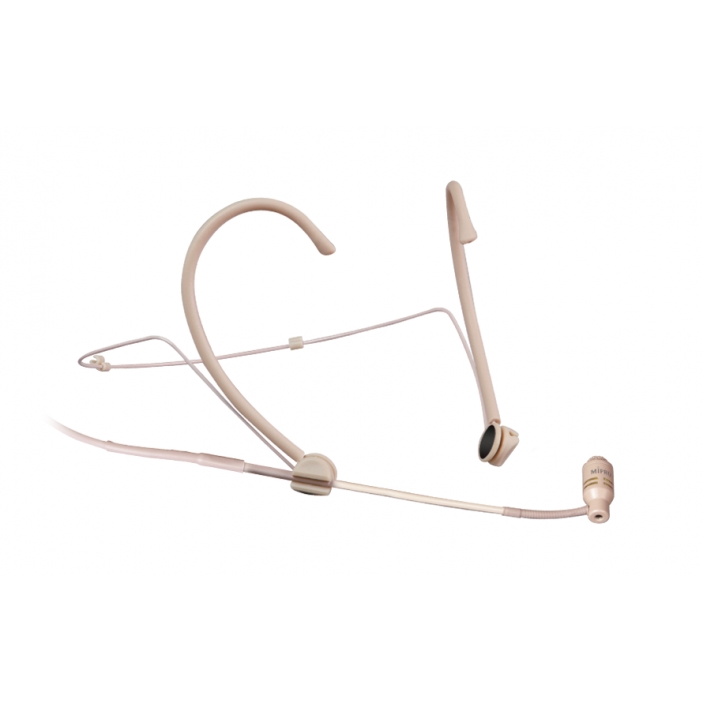

  - MiPro MU-53HN
  - MiPro MU-55HN
- Compatible Instrument Microphones:
  - MiPro VM-10L
  - MiPro VM-10C
  - MiPro VM-10D
  - MiPro CM-10E
- Max. Audio Input: 6.5 dBV
- Battery Meter: 3 LEDs light in green to indicate battery status and turn to red to indicate low battery; after 2 hours power will automatically be shut down
- Dimensions: 63 x 82 x 22 mm (W x H x D)
- Net Weight: Approx. 73 g
- Battery: 2 x AA alkaline
- Note: Refer to the actual product in the event of product discrepancy

Further Product Information Below

MiPro ACT-58T (5.8GHz) manual

MiPro ACT-58T (5.8GHz) Data Sheet
