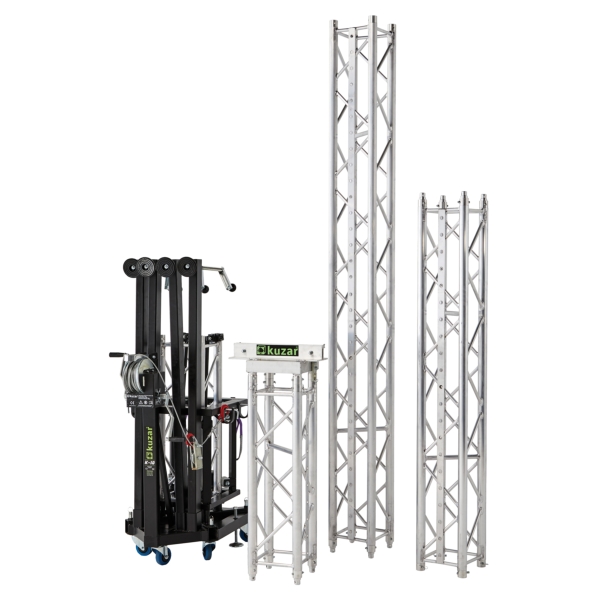

Kuzar K-10 7m 500kg Ground Support Tower System

Name: Kuzar K-10 7m 500kg Ground Support Tower System
Brand: Kuzar
SKU: 0735202935187
Price: 3702.94 GBP
Availability: InStock

Price Each £3,085.78 (£3,702.94 Including VAT at 20%)

REF: JP104957

Quantity:

Kuzar K-10 7m 500kg Ground Support Tower System, The K-10 from Kuzar is an easy to use ground support tower requiring only one person to setup. The tower is erected using the integral winch, hoisting the tower over the base's pivot joints into the vertical position, whilst the rigid steel base gives stability. The rest of the tower is built with 30 x 30cm Kuzar truss composed of 50mmØ thick tubes with integral brake runner. The composition of trusses to form the tower is 1m + 3m + 2m + 1m, giving the user an overall height of 7m. Once the tower is erected, the load is lifted with the manual hoist, and non-slip and adjustable supports are used in the base. Adaptors are available separately to integrate with Global Truss F34PL or Global Truss F34 Standard horizontal truss sections.

Click Here for Printer Friendly Version

Kuzar K-10 7m 500kg Ground Support Tower System Features

- Please note: Shipping charges may apply
- 2 year warranty
- High quality winch, loaded with steel cable
- Manufactured in Europe to both DGUV 17 Directive and CE (2006/42/CE) standards
- Automatic trigger braking system prevents the sleeve from lowering in error
- Supplied with 7m of truss
- Adaptors are available separately to integrate with Global Truss F34PL or Global Truss F34 Standard horizontal truss sections

Kuzar K-10 7m 500kg Ground Support Tower System Specifications

- Maximum height: 7m
- Maximum load: 500kg
- Folded height: 1.68m
- Maximum footprint: 2.29 x 2.29m
Vertical truss specification:
- 2.5mm wall thickness aluminium
- Truss Diameter: 300mm
- Tube Diameter: 50mm
- Note: This product does not have a wind speed rating and is only suitable for indoor applications

Further Product Information Below

Kuzar K-10 Data Sheet (PDF)
