JTS UR-816D UHF PLL Single Channel Diversity Receiver - Channel 70

JTS UR-816D UHF PLL Single Channel Diversity Receiver - Channel 70 Features

- Preset 16 selectable UHF channels
- Single transmitter operation
- Diversity technology prevents dropouts in the RF link
- PLL synthesized technology
- Noise mute and pilot tone squelch
- Equipped with both XLR balanced and 6.3mmØ unbalanced outputs
- Tuned antennas maximize the effective range of the wireless link
- Compact half rack space design

JTS UR-816D UHF PLL Single Channel Diversity Receiver - Channel 70 Specifications

- Carrier Frequency Range: Channel 70, 863 - 865 MHz (License Free)
- Net Dimension (WxHxD): 210 x 40 x 171mm
- Frequency Preparation: PLL Synthesized Control
- S/N Ratio: > 105dB
- Display: LED
- Display Contents: Antenna A/B, RF/AF Status
- Controls: Power On/Off, Channel Selection, Audio Level
- Audio Output Level: -12dB
- Squelch: Pilot Tone & Noise Mute

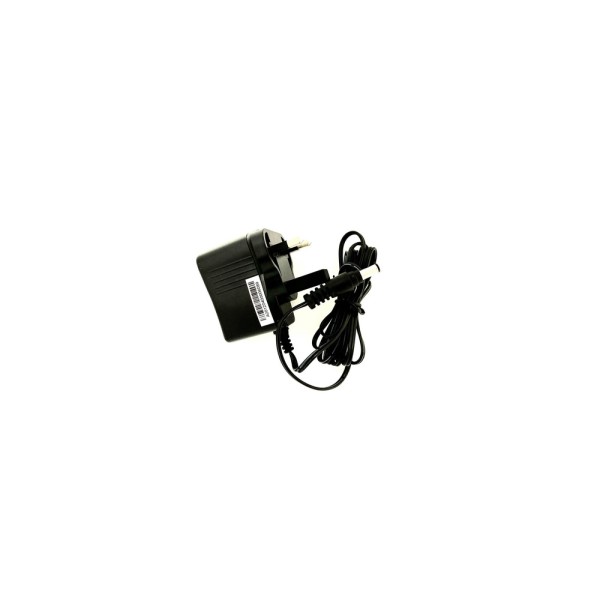

- Operation Voltage: 12-18V DC, 200mA
- Output Connector: 1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket
- AF Output Impedance: 600Ω

Further Product Information Below

JTS UR-816D Manual (PDF)

- Carrier Frequency Range: Channel 70, 863 - 865 MHz (License Free)

Please Note: This item is no longer held in UK stock as a rule. This will be a special order item direct from the JTS factory in Taiwan and as such then lead time for this item is typically around 8-10 weeks. This item once ordered, cannot be cancelled.
