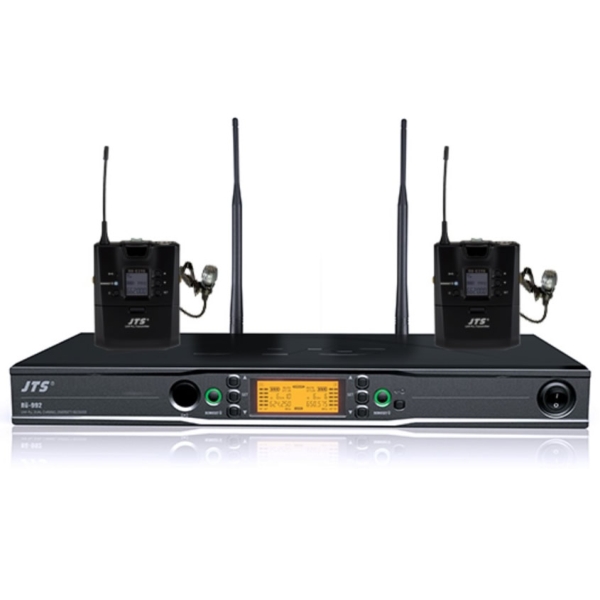

JTS RU-992 Dual Channel Receiver with 2x JTS RU-G3TB Body Pack Transmitters and 2x CM501 Microphones - Channel 38 to 42

JTS RU-992 Dual Channel Receiver with 2x JTS RU-G3TB Body Pack Transmitters and 2x CM501 Microphones Features

- 1,441 selectable individual frequencies
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Auto-Scan function
- Pilot tone squelch and noise mute
- Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
- 2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.) And a switched mixed unbalanced output utilising one of the TS Jack outputs.
- Removable BNC Antennas
- Full rack size with rack ears included.
- Optional rechargeable Station with rechargeable batteries is available (JP100547)

JTS RU-G3TB Body Pack Transmitter with JTS CM-501 Microphone - Channel 38 to 42 Features

- Phase-locked Loop (PLL) synthesized tuner
- Powered by 2 x AA batteries with 12 hrs. average battery life
- Equipped with 4 Pin Mini XLR connector
- LCD display with channel and battery life indicator, ID number
- The "lock-on" function prevents tampering and RF interruption
- Extended dynamic range and smooth frequency response
- Noise mute and tone-key squelch
- Compatible with Guitar cable and wireless instrument microphones

JTS CM-501HI High Sensitivity Condenser Lavalier Microphone Features

- For presentations and discussions
- Good audibility, secure fit due to supplied tie clip, easy to attach
- Cardioid polar pattern
- Allows to pick up a precise voice of high quality over a wide dynamic range

JTS RU-G3TB Body Pack Transmitter with JTS CM-501 Microphone - Channel 38 to 42 Specifications

- Carrier Frequency Range: Channel 38 to 42, 606.5 - 642 MHz (License Required)
- Audio frequency range: 50-18,000 Hz
- Channels: 1
- Operating time: 12 h
- Admiss. ambient temp.: 0-40 °C
- Transmitting power: 10/50 mW
- Power supply: 2 x battery AA size, alkaline (not supplied)
- Width: 62 mm
- Height: 80 mm
- Depth: 23 mm
- Weight: 300 g
- Connections: 4-pole mini XLRJTS CM-501 Condenser Lavalier Microphone Specifications

- Transmission method: Cable
- Polar pattern: Cardioid
- System: Electret
- Audio frequency range: 100-15,000 Hz
- Nominal Impedance: 2.2 kΩ
- Sensitivity: 3.2 mV/Pa
- Max. sound pressure: 130 dB
- Power supply: pocket transmitter IN/PT/UF series or PS-500
- Ambient temp: 0-40 °C
- Connection: 4-pole mini XLR
- Packing dimensions (W x H x L): 90 x 5 x 15 mm
- Weight: 20 g

JTS CM-501HI High Sensitivity Condenser Lavalier Microphone Specifications

- Frequency Response: 100 to 15,000Hz
- Polar Pattern: Cardioid
- Output Level(at 1,000Hz): -54 ±3 dB* (2mV) *0dB=1V /μbar
- Impedance: Rated impedance is 3.7kΩ
- Max. SPL for 1%THD: 115dB
- Standard Operating Voltage: 5Vdc
- Operation Voltage Range: 3~10 Vdc
- Current consumption: Max. 0.5mA
- Output Connector: TA4F
- Net Weight: 21.5g

- Carrier Frequency Range: Channel 38 to 42, 606.5 - 642 MHz (License Required)
