JTS Wireless Microphone System for Guitar or Accordian - Channel 70

Price Each £258.43 (£310.12 Including VAT at 20%)

REF: JP50329

Quantity:

JTS Wireless Microphone System for Guitar or Accordian - Channel 70

The JTS Wireless Microphone System for Guitar or Accordian is everything you need to effortlessly and wirelessly mic up any Acoustic Guitar or Accordian that comes with an inter-changeable mic fitting and 16 preset selectable UHF channels. The JTS UR-816D/GT is the ultimate wireless experience for the musician on the move.
This truly ingenious system from JTS enables easy wireless micing of either an Acoustic Guitar or Accordian thanks to the interchangeable jack or mic fitting. The system comprises of the JTS UR-816D UHF PLL Single Channel Diversity Receiver, with a JTS UT-16GT UHF PLL Guitar/Winds Transmitter and UT-508GT Sub miniature winds transmitter.

<p style="color: red"><i><b>Please Note:</b> This item is no longer held in UK stock as a rule. This will be a special order item direct from the JTS factory in Taiwan and as such then lead time for this item is typically around 8-10 weeks. This item once ordered, cannot be cancelled.</i></p>

Click Here for Printer Friendly Version

JTS UR-816D Wireless Receiver Features

- Preset 16 selectable UHF channels
- Single transmitter operation
- Diversity technology prevents dropouts in the RF link
- PLL synthesized technology
- Noise mute and pilot tone squelch
- Equipped with both XLR balanced and 6.3mmØ unbalanced outputs
- Tuned antennas maximize the effective range of the wireless link
- Compact half rack space design

JTS UT-16GT Wireless Transmitter Features

- Sub miniature guitar transmitter with patent pending design
- UHF PLL 16 preset selectable channels
- Powered by one AAA battery for over8 working hours
- Over 60 meter of stable operation distance
- High signal to noise ratio
- Standby function provided for stable wireless link
- Provide great convenience to both guitarist and winds player

JTS Wireless Microphone System for Guitar or Accordian - Channel 70 Specifications

- Carrier Frequency Range: Channel 70, 863 - 865 MHz (License Free)

JTS UR-816D Wireless Receiver Specifications

- Net Dimension (WxHxD): 210 x 40 x 171mm
- Frequency Preparation: PLL Synthesized Control
- S/N Ratio: > 105dB
- Display: LED
- Display Contents: Antenna A/B, RF/AF Status
- Controls: Power On/Off, Channel Selection, Audio Level
- Audio Output Level: -12dB
- Squelch: Pilot Tone & Noise Mute
- Operation Voltage: 12-18V DC, 200mA
- Output Connector: 1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket
- AF Output Impedance: 600Ω

JTS UT-16GT Wireless Transmitter Specifications

- Frequency Preparation: PLL Synthesized Control
- Controls: Power On/Off, AF Level, Channel Setting, Mute
- RF Outputs: Maximum 10mW
- Frequency Deviation: ±48KHz
- LED Display: Power On/Off, Low Battery
- Battery: LR03, AAA 1.5V
- Audio Frequency Response: 40Hz - 18kHz
- Stabilty: ±10KHz

Further Product Information Below

JTS Wireless Microphone Pack for Guitar & Accordian Manual (PDF)

- Carrier Frequency Range: Channel 70, 863 - 865 MHz (License Free)

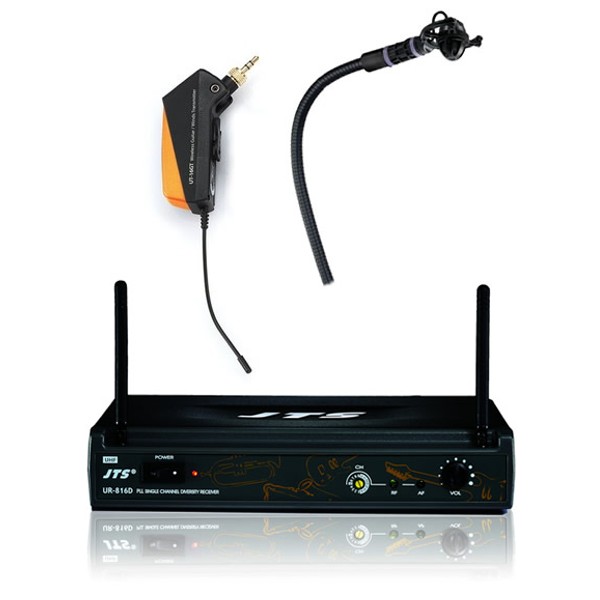

JTS Wireless Microphone System for Guitar or Accordian - Channel 70 System Includes:
- JTS UR-816D Wireless Receiver
- JTS UT-16GT Wireless Transmitter
- JTS 508GT Condenser Microphone attachment
- JTS 6.3GT Plug 3.5mm to 6.35mm Jack adaptor
- JTS 516 Bracket + 16GT Adapter for securing the transmitter
