JTS 4 Way UF-20R Rack System with 4 JSS-20 Handheld Transmitters - Channel 38

JTS 4 Way UF-20R Rack System with 4 JSS-20 Handheld Transmitters - Channel 38 Features
JTS UF-20R Receiver:
- Bandwidth: 75 MHz
- 15 groups, each with 63 compatible preset channels
- 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
- RF output and mains voltage output for easily cascading up to 10 x UF-20R/5 receiver without additional splitter
- REMOSET technology for receiver/transmitter synchronisation
- Auto-scan function
- Pilot tone and noise squelch
- Equalizer function
- LED for indicating RF level and AF level
- Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
- Metal housing
- Power supply for optional antenna booster UB-900I directly via antenna inputs

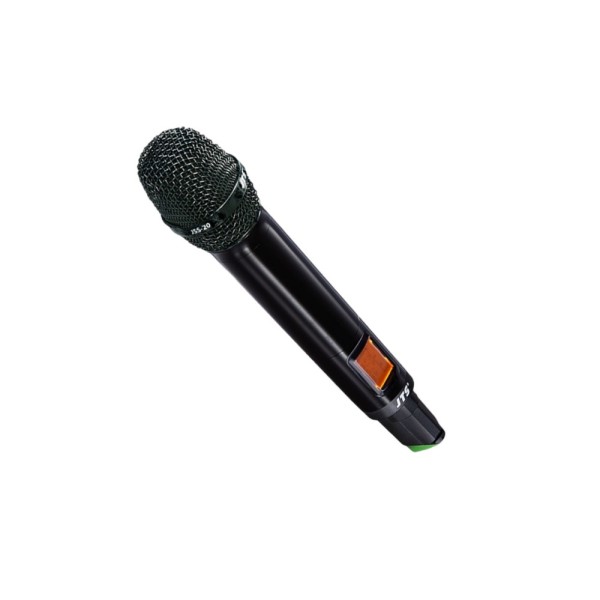

JTS JSS-20 Transmitter:
- Dynamic microphone cartridge (cardioid polar pattern) with minimised feedback susceptibility as well as suppression of handling noise/structure-borne noise
- Bandwidth: 75 MHz
- 15 groups, each with up to 63 compatible preset channels
- 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
- REMOSET technology for receiver/transmitter synchronisation
- Adjustable sensitivity (-15 dB to ±15 dB)
- Lock function/mute function
- 5-level display for indicating battery status and low battery alert, backlit LCD
- Switchable transmitting power

JTS 4 Way UF-20R Rack System with 4 JSS-20 Handheld Transmitters - Channel 38 Specifications

- Carrier Frequency Range: Channel 38, 606.5 - 630 MHz (License Required)

JTS UF-20R Receiver:
- Channels: 2
- THD: < 0.5%
- Dynamic range: > 108 dB
- Admiss. ambient temp.: 0-40 °C
- Audio signal:
  - 100 mV XLR
  - 100 mV jack
- Power supply: ˜100-240 V/50-60 Hz/25 VA
- Width: 480 mm
- Height: 44 mm
- Depth: 214 mm
- Weight: 2.9 kg
- Connections:
  - 2 x XLR balanced
  - 2 x 6.3 mm jack balanced

JTS JSS-20 Transmitter:
- Transmission method: wireless
- Polar pattern: cardioid
- System: dynamic
- Transmitting power: 10/50 mW
- Power supply: 2 x batt. AA size, alkaline (not supplied)
- Operating time: > 20 h
- Audio frequency range: 50-18,000 Hz
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 50 mmØ x 260 mm
- Weight: 340 g
- Packing dimensions (W x H x L): 0.175 x 0.085 x 0.365 m
- Gross weight: 1.075 kg
- Net weight: 0.855 kg

Further Product Information Below

JTS UF-20R Receiver Data Sheet (PDF)

JTS UF-20R Receiver Manual (PDF)

JTS JSS-20 Hand Held Transmitter Data Sheet (PDF)

JTS 4 Way UF-20R Rack System with 4 JSS-20 Handheld Transmitters - Channel 38 Kit Supplied With
- 2 x JTS UF-20R Receivers
- 1 x 4U Rack Case
- 1 x 2U Rack Drawer
- 4 x JSS-20 Hanheld Transmitters
- 1 x RTF-UF-20

Please Note: This will be supplied as individual items boxed to reduce the risk of transit damaged - so you will need to assemble the receivers into the rack.

Set up Tip: ID / Label the radio transmitters channel 1 to X number, then tune the receivers as per the Group and Channel allocation table- Power up the transmitters 1 at a time and place them 3M away from the rack, you can then use the Remo set function to sync the transmitter to the Receiver
