JTS 4 Way R-4 Pick 'n' Mix Rack System - Channel 38 to 41

JTS 4 Way R-4 Pick 'n' Mix Rack System Features

- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- RF output and mains voltage output for easily cascading up to 10 x R-4/5 receiver without additional splitter
- REMOSET technology for receiver/transmitter synchronisation
- Auto-scan function
- Pilot tone squelch and noise mute
- LED for indicating RF level and AF level
- Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
- XLR output per channel, balanced
- XLR output and 6.3 mm output for mixed signal
- Switchable mic/line for single outputs and mixed outputs
- Metal housing

JTS 4 Way R-4 Pick 'n' Mix Rack System Specifications

- Carrier Frequency Range: Channel 38 to 41, 606.5 - 638 MHz (License Required)
- Audio frequency range: 50-18,000 Hz
- Channels: 4
- THD: < 0.6%
- Dynamic range: > 105 dB
- Admiss. ambient temp.: 0-40 °C
- Audio signal:
  - 630 mV/600 Ω XLR (line),
  - 63 mV/600 Ω XLR (mic),
  - 320 mV/600 Ω jack
- Power supply: 100-240 V/50-60 Hz
- Width: 485 mm
- Height: 44 mm
- Depth: 230 mm
- Weight: 2.65 kg

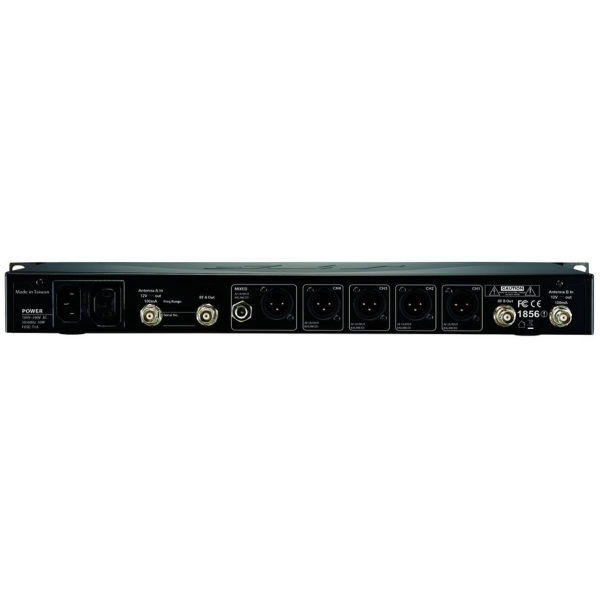

- Connections:
  - 4 x XLR, balanced
  - 1 x XLR, balanced
  - 1 x 6.3 mm jack (mixed out)

Further Product Information Below

JTS R-4 Receiver Data Sheet (PDF)

JTS R-4 Receiver Manual (PDF)

JTS UF-20 Frequency Chart (PDF)
