JTS 12 Way R-4 Rack System with 12 JSS-4B Handheld Transmitters - Channel 38

JTS 12 Way R-4 Rack System with 12 JSS-4B Handheld Transmitters - Channel 38 Features

JTS R-4 Quad Receiver:
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- RF output and mains voltage output for easily cascading up to 10 x R-4/5 receiver without additional splitter
- REMOSET technology for receiver/transmitter synchronisation
- Auto-scan function
- Pilot tone squelch and noise mute
- LED for indicating RF level and AF level
- Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
- XLR output per channel, balanced
- XLR output and 6.3 mm output for mixed signal
- Switchable mic/line for single outputs and mixed outputs
- Metal housing

JTS JSS-4B Hand Held Transmitter:
- Dynamic microphone cartridge (cardioid polar pattern) with wide dynamic range
- Aluminium housing
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET technology for receiver/transmitter synchronisation
- Adjustable sensitivity (-15 dB to +15 dB)
- Lock/mute function
- 4-level display for indicating battery status and low battery alert, backlit LCD
- Switchable transmitting power

JTS 12 Way R-4 Rack System with 12 JSS-4B Handheld Transmitters - Channel 38 Specifications

- Carrier Frequency Range: Channel 38, 606.5 - 630 MHz (License Required)

JTS R-4 Quad Receiver:
- Audio frequency range: 50-18,000 Hz
- Channels: 4
- THD: < 0.6%
- Dynamic range: > 105 dB
- Admiss. ambient temp.: 0-40 °C
- Audio signal:
  - 630 mV/600 Ω XLR (line),
  - 63 mV/600 Ω XLR (mic),
  - 320 mV/600 Ω jack
- Power supply: 100-240 V/50-60 Hz
- Width: 485 mm
- Height: 44 mm
- Depth: 230 mm
- Weight: 2.65 kg
- Connections:
  - 4 x XLR, balanced
  - 1 x XLR, balanced
  - 1 x 6.3 mm jack (mixed out)

JTS JSS-4B Hand Held Transmitter:
- Transmission method: Wireless
- Polar pattern: Cardioid
- System: Dynamic
- Transmitting power: 10/50 mW
- Power supply: 2 x batt. AA size, alkaline (not supplied)
- Operating time: > 20 h
- Audio frequency range: 50-18,000 Hz
- Max. sound pressure: 150 dB
- Housing material: aluminium
- Admiss. ambient temp: 0-40 °C
- Dimensions: 50 mmØ x 253 mm
- Weight: 335 g
- Packing dimensions (W x H x L): 30mm x 80mm x 100mm
- Gross weight: 0.63 kg
- Net weight: 0.385 kg

Further Product Information Below

JTS R-4 Receiver Data Sheet (PDF)

JTS R-4 Receiver Manual (PDF)

JTS JSS-4B Hand Held Transmitter Data Sheet (PDF)

- Carrier Frequency Range: Channel 38, 606.5 - 630 MHz (License Required)

JTS 8 Way R-4 Rack System with 8 JSS-4B Handheld Transmitters - Channel 38 Kit Supplied With
- 3 x R 4 dual quad channel rackmount receiver
- 12 x Transmitters JSS-4B Hand Held or R 4TBM Body Pack (No Transmitters Supplied With Pick & Mix Option)

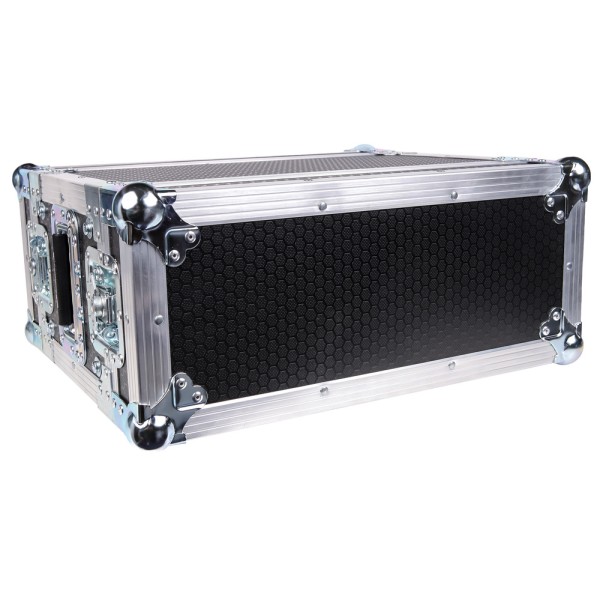

- 1 x 5U Shallow flight case
- 1 x 2U lockable rack drawer
- 1 x RTF UF 20 Rear to Front antenna kit

Please Note: this will be supplied as individual items boxed to reduce the risk of transit damaged - so you will need to assemble the receivers into the rack.

Set up Tip: ID / Label the radio transmitters channel 1 to X number, then tune the receivers as per the Group and Channel allocation table- Power up the transmitters 1 at a time and place them 3M away from the rack, you can then use the Remo set function to sync the transmitter to the Receiver
