elumen8 Distribution Unit, 400A Powerlock Type 5

Name: elumen8 Distribution Unit, 400A Powerlock Type 5
Brand: elumen8
Price: 11587.66 GBP
Availability: InStock

Price Each £9,656.38 (£11,587.66 Including VAT at 20%)

REF: JP110017

Quantity:

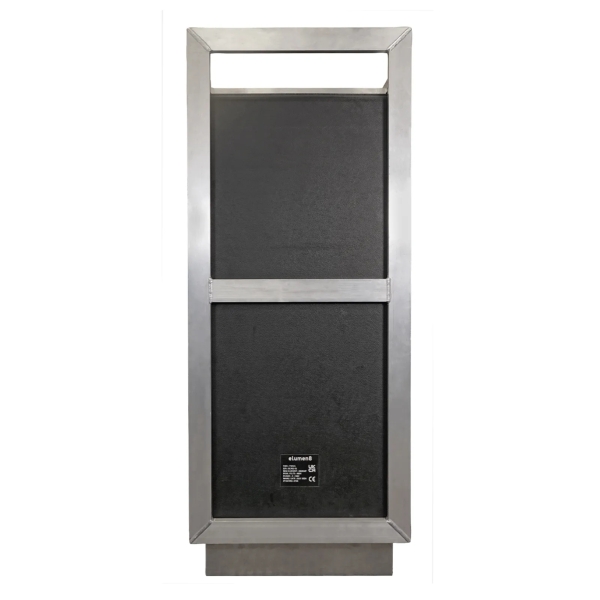

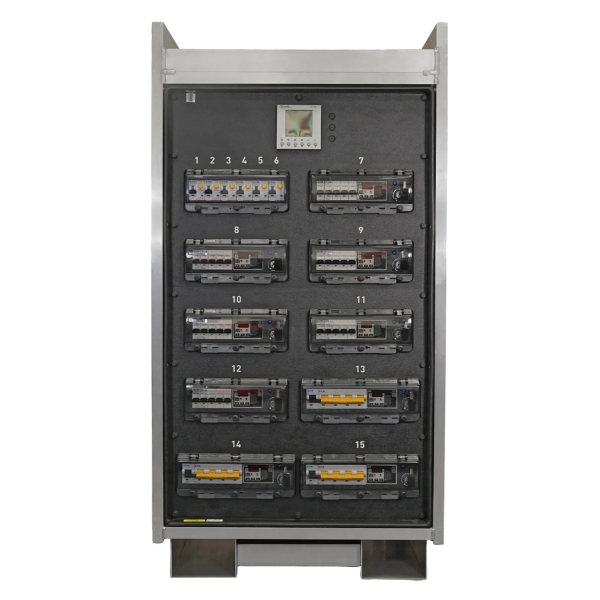

elumen8 Distribution Unit, 400A Powerlock Type 5

The elumen8 Distribution Unit, 400A Powerlock Type 5 is manufactured within a lightweight yet rugged, rental ready Aluminium frame this 400A distribution unit is designed for use on large events and concerts. The aluminium frame features fork pockets allowing the unit to be lifted and moved via forklifts.

Click Here for Printer Friendly Version

elumen8 Distribution Unit, 400A Powerlock Type 5 Features

- Made in Britain
- 400A three phase powerlock inputs with link outputs
- Earth stud
- Overall digital meter
- Aluminium frame with fork pockets

elumen8 Distribution Unit, 400A Powerlock Type 5 Specifications

- Input: 400A 3PH powerlock with neon indicators
- Outputs:
  - 400A 3PH powerlock unprotected link out
  - 3x 125A 3PH panel sockets with neon indicators protected by 3x 125A 4-Pole MCB / Digital variable switchable RCD
  - 3x 63A 3PH panel sockets with neon indicators protected by 3x 63A 4-Pole MCB / Digital variable switchable RCD
  - 3x 32A 3PH panel sockets with neon indicators protected by 3x 32A 4-Pole MCB / Digital variable switchable RCD
  - 3x 32A 1PH panel sockets with neon indicators protected by 3x 32A 2-Pole 30ma RCBO
  - 3x 16A 1PH panel sockets with neon indicators protected by 3x 16A 2-Pole 30ma RCBO
- Dimensions (W x H x D): 650 x 1242 x 500 mm
