elumen8 Distribution Unit, 32A 3PH, 3x 32A 1PH, 6x 16A Out

Name: elumen8 Distribution Unit, 32A 3PH, 3x 32A 1PH, 6x 16A Out
Brand: elumen8
Price: 1430.21 GBP
Availability: InStock

Buy 2+ units for £2731.7 Inc VAT. To Do So, Click Here to Register.

Price Each £1,191.84 (£1,430.21 Including VAT at 20%)

REF: JP109862

Quantity:

elumen8 Distribution Unit, 32A 3PH, 3x 32A 1PH, 6x 16A Out

Manufactured within a rugged HDPE chassis this 32A grab box style distribution unit is designed for use on large events and concerts.

Click Here for Printer Friendly Version

elumen8 Distribution Unit Features

- Made in Britain
- 32A three phase input with link output
- Earth stud

elumen8 Distribution Unit Specifications

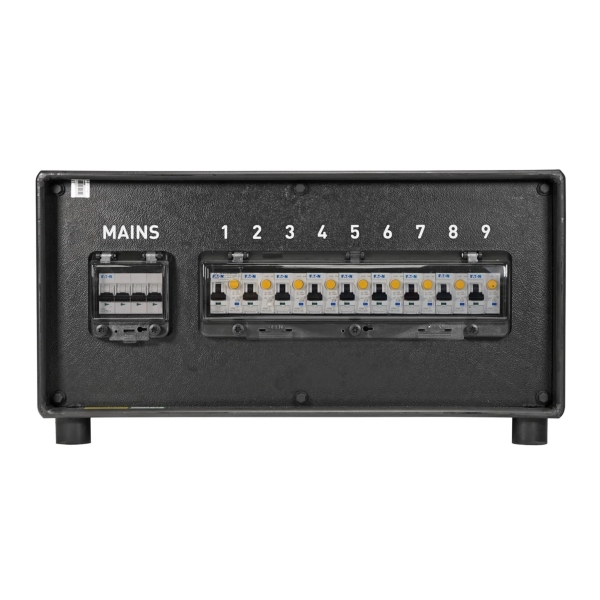

- Input: 32A 3PH appliance inlet with neon indicators protected by an overall 32A 4-Pole MCB

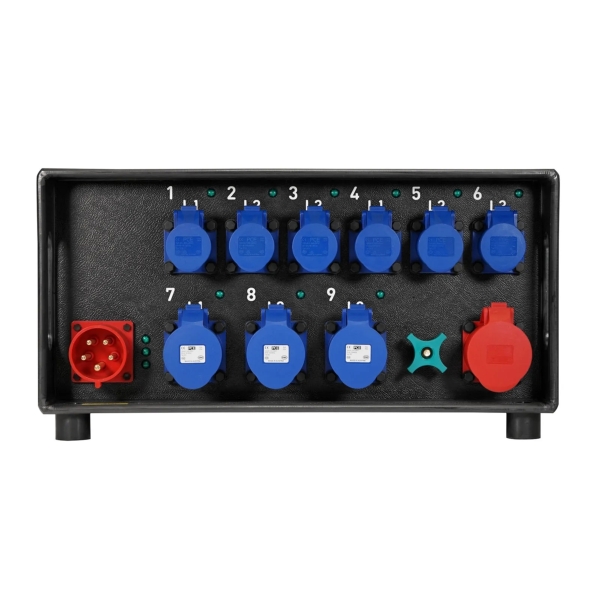

- Outputs: 1 x 32A 3PH unprotected link out, 3 x 32A 1PH panel sockets with neon indicators protected by 6 x 32A 2-Pole 30mA RCBO’s, 6 x 16A 1PH panel sockets with neon indicators protected by 12 x 16A 2-Pole 30mA RCBO’s
- Dimensions (W x H x D): 572 x 297 x 418 mm
- Weight: 16.0 kg
