elumen8 MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO

Name: elumen8 MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO
Brand: elumen8
Price: 1668.32 GBP
Availability: InStock

Buy 2+ units for £3186.51 Inc VAT. To Do So, Click Here to Register.

Price Each £1,390.27 (£1,668.32 Including VAT at 20%)

REF: JP109435

Quantity:

elumen8 MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO

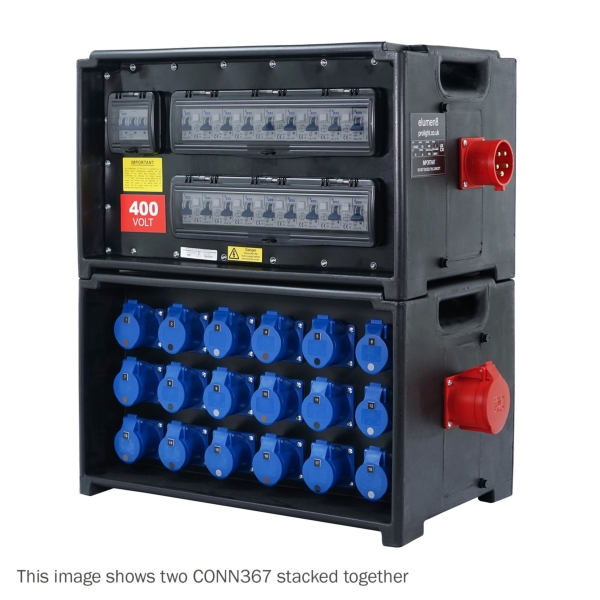

The elumen8 MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO is robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Manufactured with 32A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.

Click Here for Printer Friendly Version

elumen8 MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO Features

- Made in Britain
- Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
- IP44 rated
- Stackable design for space saving

elumen8 MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO Specifications

- Input: 32A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis plug protected by a 4-Pole 32A type C MCB
- Pass Through: 32A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis socket
- Outputs: 18 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a type A dual pole RCBO
- Dimensions (W x H x D): 671 x 338 x 345 mm
- Weight: 17.8 kg
