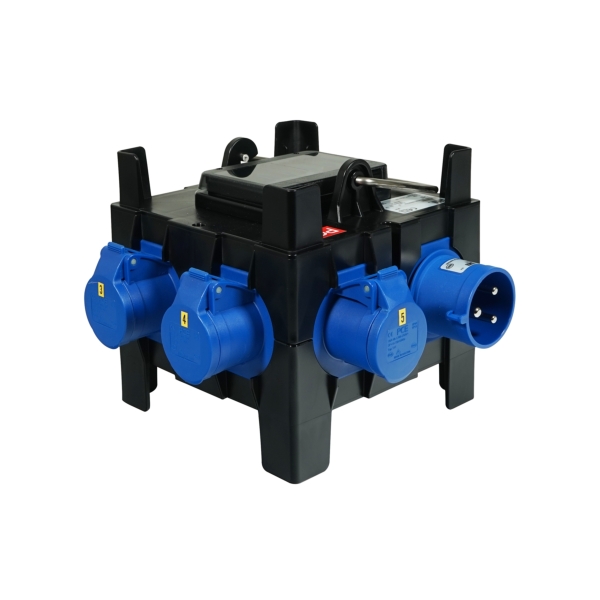

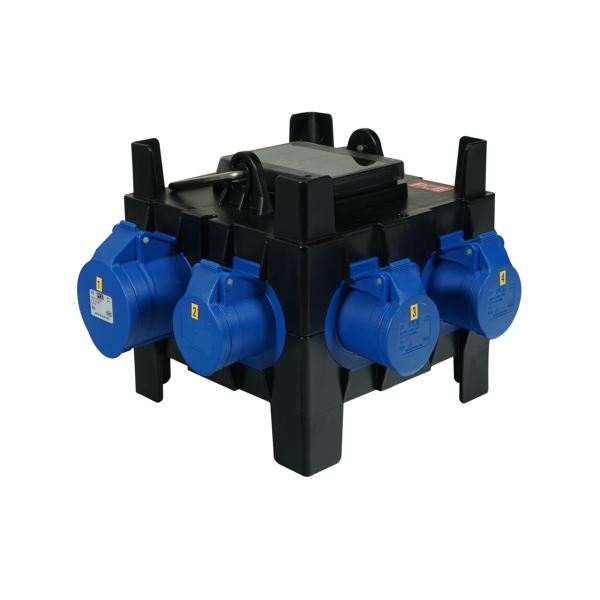

PCE IMST Distribution Box 32A 240V In, 4 x 16A + 1 x 32A Out (9030656)

Price Each £236.98 (£284.38 Including VAT at 20%)

REF: JP108931

Quantity:

PCE IMST Distribution Box 32A 240V In, 4 x 16A + 1 x 32A Out (9030656)

The PCE IMST Distribution Box is handy, robust, lightweight and made of shock-resistant polyamide. They feature a high-grade steel folding carry handle, have stackable design and are IP44 rated.

Click Here for Printer Friendly Version

PCE IMST Distribution Box 32A 240V In, 4 x 16A + 1 x 32A Out Features

- Handy, robust and lightweight distribution box made of shock-resistant polyamide
- High-grade steel folding carry handle

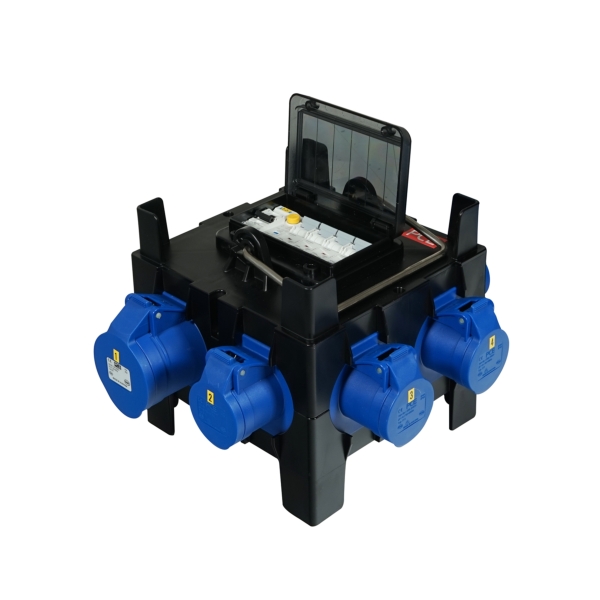

- 5 modules under clear MCB window
- IP44 rated
- Stackable design
- Made in the EU

PCE IMST Distribution Box 32A 240V In, 4 x 16A + 1 x 32A Out Specifications

- Input: 32A 220-250V~50/60Hz 3-Pin 2P+E IP44 inlet
- Outputs: 1 x 32A 220-250V~50/60Hz 2P+E IP44 socket, 4 x 16A 220-250V~50/60Hz 2P+E IP44 sockets each protected by 16A 1P MCB C Curve
- Type A 32A 30mA 2P RCBO protecting all outputs
- Dimensions (W x H x D): 245 x 196 x 300
- Weight: 2.7 kg
