elumen8 MERZ Distribution Box 63A 3PH to 3x 32A 3PH, 6x 16A 1PH

Name: elumen8 MERZ Distribution Box 63A 3PH to 3x 32A 3PH, 6x 16A 1PH
Brand: elumen8
Price: 1550.33 GBP
Availability: InStock

Price Each £1,291.94 (£1,550.33 Including VAT at 20%)

REF: JP108100

Quantity:

elumen8 MERZ Distribution Box 63A 3PH to 3x 32A 3PH, 6x 16A 1PH

The elumen8 MERZ Distribution Box 63A 3PH to 3x 32A 3PH, 6x 16A 1PH is manufactured using PCE components fitted into a MERZ enclosure creating a robust, lightweight unit made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Fitted with PCE Midnight black connectors to allow the distribution unit to blend into stage environments.

Click Here for Printer Friendly Version

elumen8 MERZ Distribution Box 63A 3PH to 3x 32A 3PH, 6x 16A 1PH Features

- Made in Britain
- Handy, robust distribution box made of shock-resistant thermoplastic
- IP44 rated
- PCE Midnight black connectors
- Stackable design for space saving
- Neon indicators for visible confirmation of incoming supply

elumen8 MERZ Distribution Box 63A 3PH to 3x 32A 3PH, 6x 16A 1PH Specifications

- Input: 63A 400V 3P+N+E IP67 appliance inlet

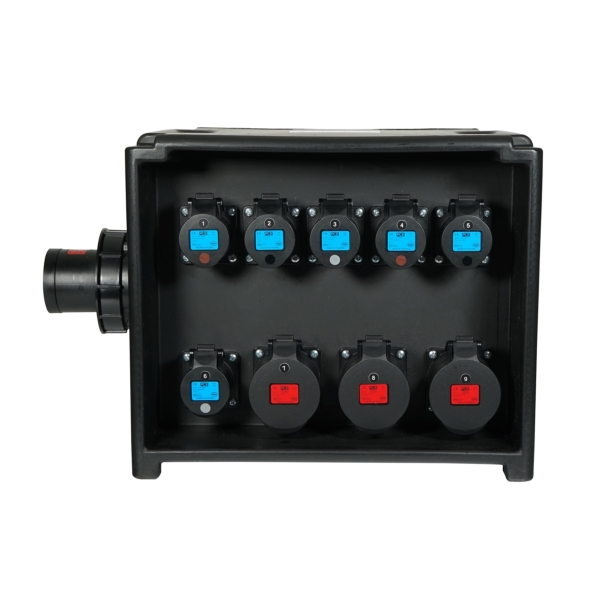

- Outputs:

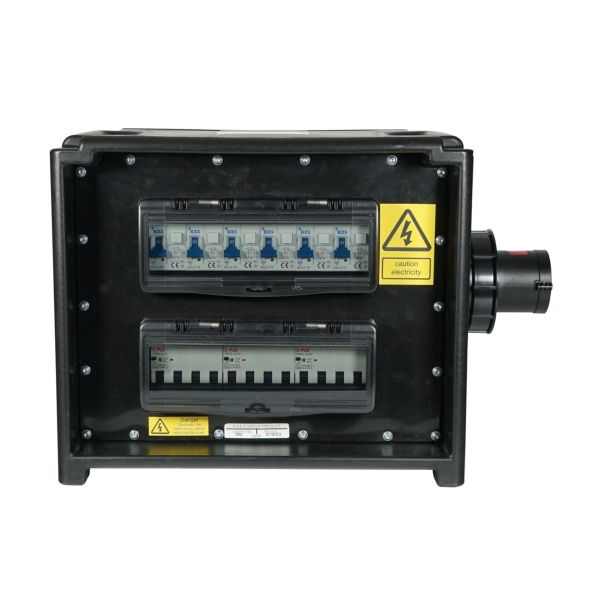

- 3x 32A 415V 3P+N+E IP44 sockets each protected by 32A 30mA 4-pole RCBO
- 6x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-pole RCBO
- Dimensions (W x H x D): 520 x 340 x 350 mm
- Weight: 13.5 kg
