elumen8 MERZ Distribution Box 63A 3PH to 1x 32A 400V, 3x 32A 230V, 6x 16A 230V

Name: elumen8 MERZ Distribution Box 63A 3PH to 1x 32A 400V, 3x 32A 230V, 6x 16A 230V
Brand: elumen8
Price: 2181.82 GBP
Availability: InStock

Price Each £1,818.18 (£2,181.82 Including VAT at 20%)

REF: JP107346

Quantity:

elumen8 MERZ Distribution Box 63A 3PH to 1x 32A 400V, 3x 32A 230V, 6x 16A 230V

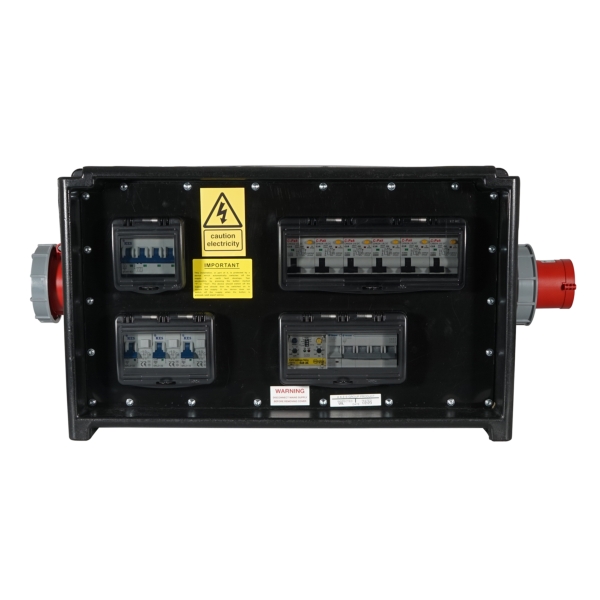

The elumen8 MERZ Distribution Box 63A 3PH is a 63A distribution box that's robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Manufactured with 63A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.

Click Here for Printer Friendly Version

elumen8 MERZ Distribution Box 63A 3PH Features
- Made in Britain
- Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
- IP44 rated
- Stackable design for space saving

elumen8 MERZ Distribution Box 63A 3PH Specifications
- Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4pole type C MCB
- Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket
- Outputs:
1 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 4-pole MCB with variable earth leakage relay,
3 x 32A 220-250V~50/60Hz 2P+E sockets each protected by a 32A 30mA 2-pole RCBO,
6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a 16A 30mA 2-pole RCBO
- Dimensions (H x W x D): 340 x 740 x 340mm
- Weight: 17.5kg
