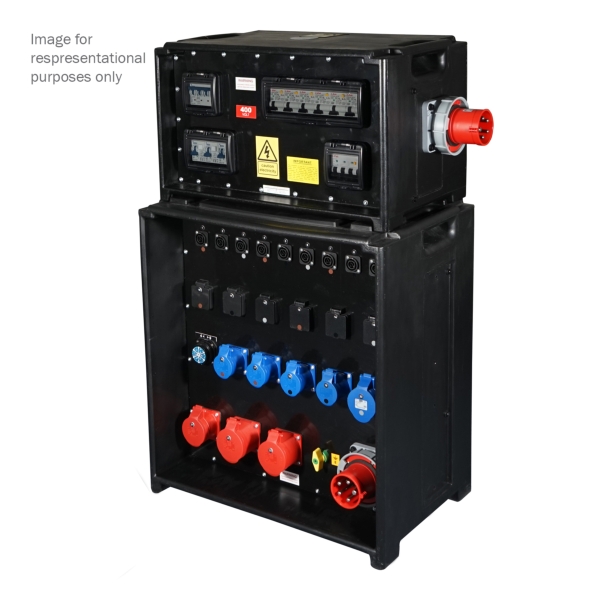

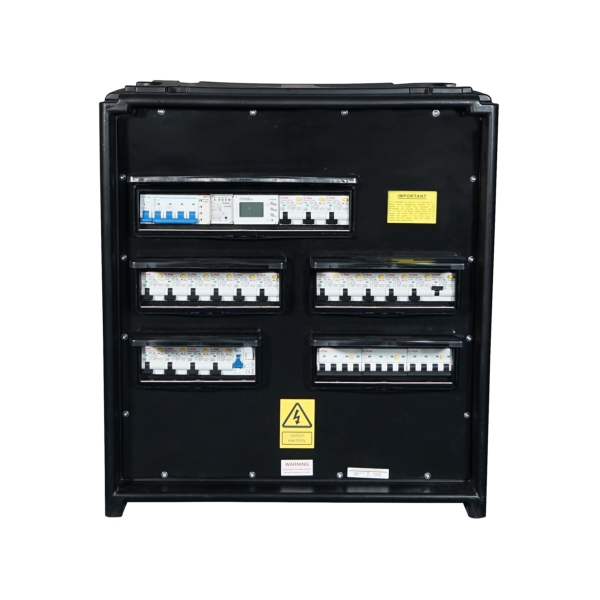

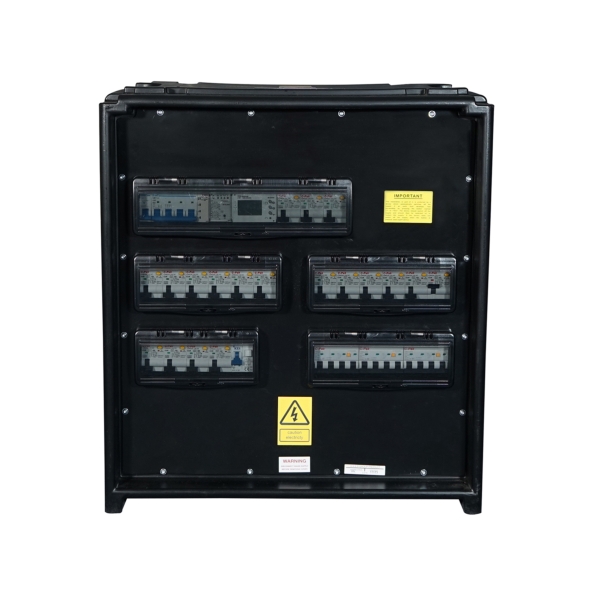

elumen8 MERZ Distribution Box 63A 3PH, Variable ELR

elumen8 MERZ Distribution Box 63A 3PH, Variable ELR Features
- Made in Britain
- Handy, robust distribution box made of shock-resistant thermoplastic
- IP44 rated
- Stackable design for space saving
- External earth stud
- Variable earth leakage relay
- Phase sequence/failure indication
- Digital multi-meter
- Input: 63A 400V 3P+N+E IP67 appliance inlet with 4-pole MCB
- Outputs:
2 x 32A 415V 3P+N+E IP44 sockets each protected by 32A 30mA 4-pole RCBO,
1 x 16A 415V 3P+N+E IP44 sockets protected by 16A 30mA 4-pole RCBO,
1 x 32A 230V 2P+E IP44 sockets protected by 32A 30mA 2-pole RCBO,
4 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-pole RCBO,
4 x 13A 230V 2P+E IP44 sockets each protected by 10A 30mA 2-pole RCBO,
3 x Neutrik TRUE1 230V 2P+E IP65 sockets each protected by 16A 30mA 2-pole RCBO,
1 x 19-Pin Socapex in parallel with 6 x Neutrik TRUE1 230V 2P+E IP65 sockets each protected by 16A 30mA 2-pole RCBO

elumen8 MERZ Distribution Box 63A 3PH, Variable ELR Specifications
- Dimensions (H x W x D): 669 x 600 x 400mm
- Weight: 29.2kg
