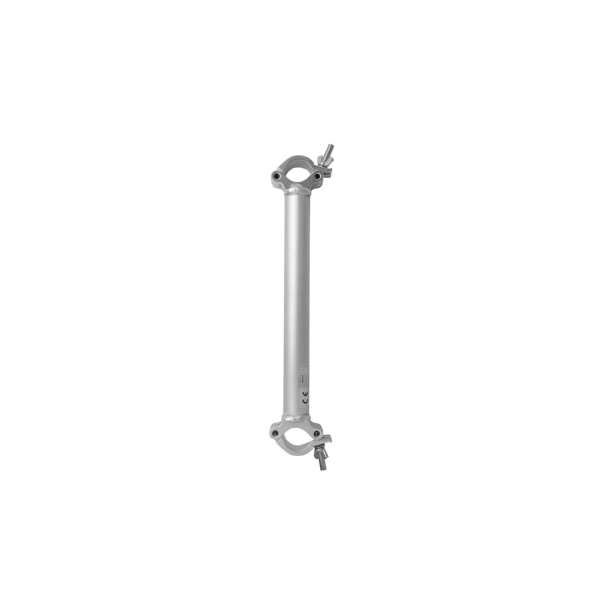

Global Truss 500mm Tube to Tube Coupler Stage Black

Name: Global Truss 500mm Tube to Tube Coupler Stage Black
Brand: Global Truss
Price: 45.36 GBP
Availability: InStock

Price Each £37.80 (£45.36 Including VAT at 20%)

REF: JP106912

Quantity:

Global Truss 500mm Tube to Tube Coupler Stage BlackThe Global Truss F34 features TUV Certified aluminium welding and 3mm wall thickness for a superb load handling capacity. A full range of lengths, baseplates, corners, connectors and couplers are available, making them ideal for fixed installation, shop fittings and rental applications. Manufactured from lightweight aluminium and finished with stage black powder coating, these tube to tube couplers are ideal for mounting pipes parallel to each other, especially useful in creating drop beams at various heights. Available in 4 sizes for maximum flexibility; 250mm, 500mm, 750mm and 1000mm. Fitted with 48-51mm couplers, they can be used with the majority of truss in the marketplace.

Click Here for Printer Friendly Version

Global Truss 500mm Tube to Tube Coupler Stage Black Features

- Centres: 500mm
- Pipe: 48mmØ
- Superior 3mm wall thickness aluminium
- Coupler: 48-51mm
- WLL: 100kg

Global Truss 500mm Tube to Tube Coupler Stage Black Specifications

- Dimensions: 111 x 616 x 50mm
- Weight 1.5kg

Further Product Information Below

Global Truss 500mm Tube to Tube Coupler Technical Drawing (PDF)
