Robolights IWB End Terminal Box, 12 Circuit (EB/B)

Name: Robolights IWB End Terminal Box, 12 Circuit (EB/B)
Brand: Robolights
SKU: 0702338066382
Price: 94.19 GBP
Availability: InStock

Price Each £78.49 (£94.19 Including VAT at 20%)

REF: JP106089

Quantity:

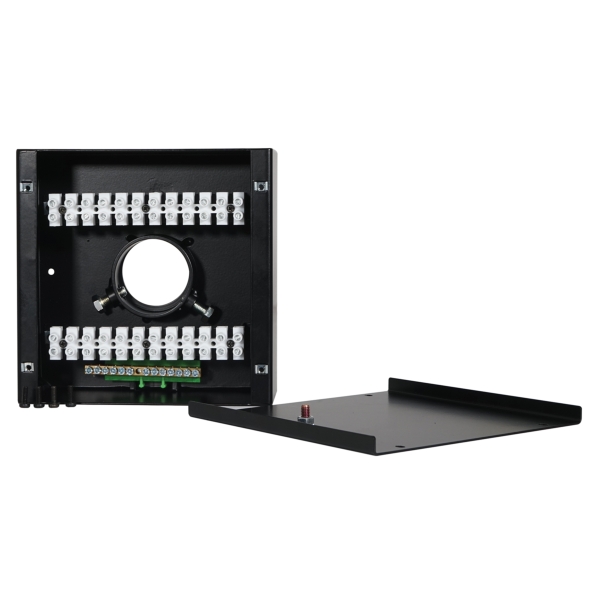

Robolights IWB End Terminal Box, 12 Circuit (EB/B), This end box is designed to fit onto the end of an internally wired lighting bar for neat and easy termination. This end box is manufactured from 1.5mm mild steel and is finished in black powder coat. It comes complete with 20A screw terminal strips for up to 12 circuits and has an internal tube clamp to attach the box to 48mm OD tube. An additional 6 way terminal kit can be fitted to allow up to 18 circuits in total (CONN1139).

Click Here for Printer Friendly Version

IWB End Terminal Box, 12 Circuit (EB/B) Features

- Enclosure material 18 SWG mild steel
- Tube Clamp Accepts 48.3mm OD tube
- Durable powder coat finish

IWB End Terminal Box, 12 Circuit (EB/B) Specifications

- L&N terminal rating 380VAC, 20A
- L&N terminal cable capacity 6mm CSA
- L&N terminal material Brass with steel screws
- Earth terminal bar cable capacity 1 x 25mm (max) and 8 x 16mm (max) CSA
- Dimensions 180mm x 180mm x 72mm
- Weight 1.6kg (complete)

Further Product Information Below

Robolights IWB End Terminal Box Data Sheet (PDF)

Robolights IWB End Terminal Box Fitting Instructions (PDF)
