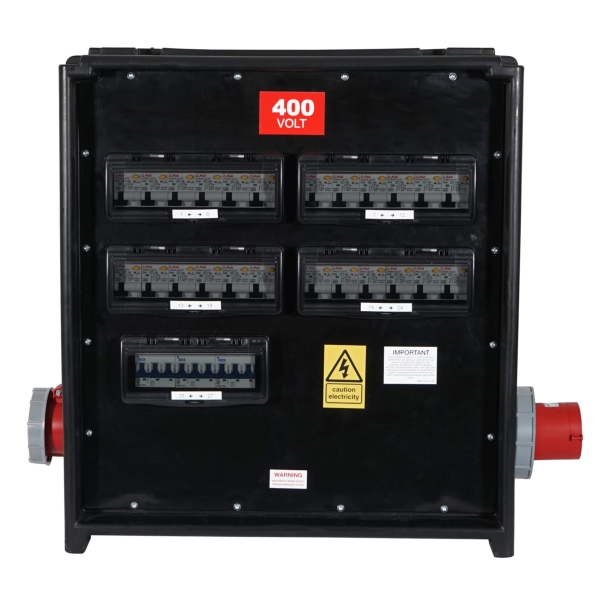

PCE MERZ Distribution Box 125A 3PH

Price Each £2,627.98 (£3,153.58 Including VAT at 20%)

REF: JP105924

Quantity:

PCE MERZ Distribution Box 125A 3PH, PCE MERZ 125A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Individual RCBO protection across all outputs reduces the risk of nuisance tripping.

Click Here for Printer Friendly Version

MERZ Distribution Box 125A 3PH Features

- Handy, robust distribution box made of shock-resistant thermoplastic
- IP44 rated
- Stackable design for space saving
- Made in the EU

MERZ Distribution Box 125A 3PH Specifications

- Input: 125A 400V 3P+N+E IP67 appliance inlet
- Outputs:
1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-pole MCB, 2 x 32A 230V 3P+N+E IP44 sockets each protected by 32A 4-pole MCB, 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-pole RCBO, 12 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-pole RCBO
