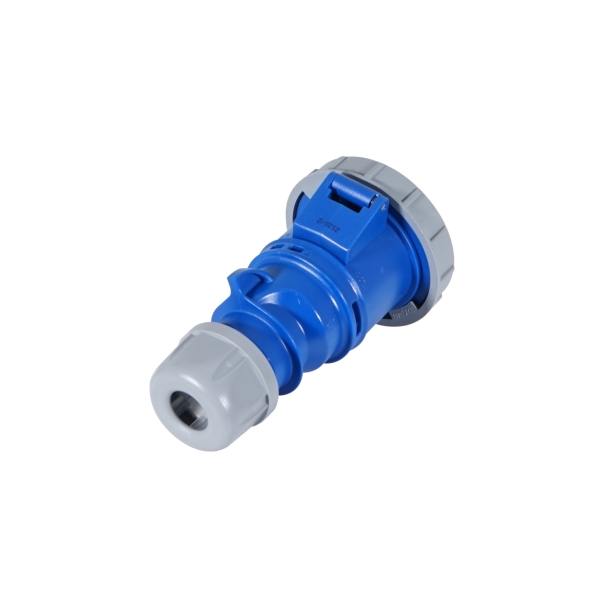

PCE 32A 230V IP67 2P+E Socket (2232-6)

Price Each £16.01 (£19.21 Including VAT at 20%)

REF: JP104414

Quantity:

PCE 32A 230V IP67 2P+E Socket (2232-6), 32A IP67 rated CEE-type cable socket suitable for power connections in the event and rental industry.

Click Here for Printer Friendly Version

PCE 32A 230V IP67 2P+E Socket (2232-6) Features

- Screw terminals
- Polyamide 6 body offers excellent impact resistance
- High abrasion resistance
- Twist grip cable gland with safety screw
- IP67 rated
- Made in the EU

PCE 32A 230V IP67 2P+E Socket (2232-6) Specifications

- 32A 240V
- 2P+E configuration
- Cable sizes: 2.5-6.0mm²
- Dimensions (H x W x D): 96 x 163 x 90mm
- Weight: 0.275kg

Further Product Information Below

Data Sheet (PDF)

Technical Drawing (PDF)
