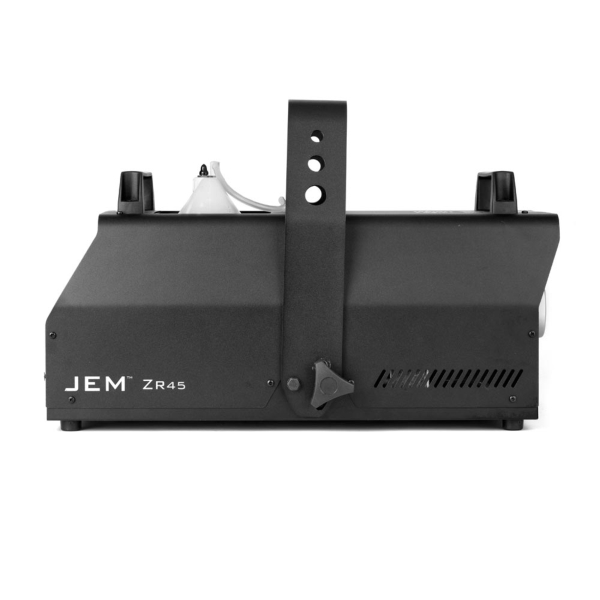

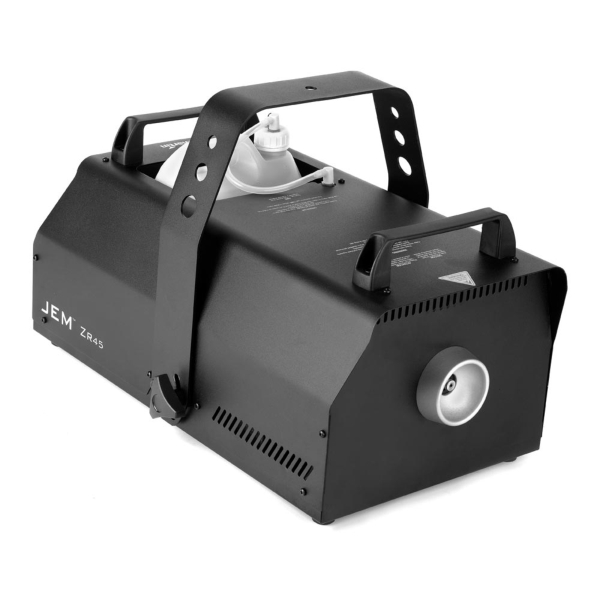

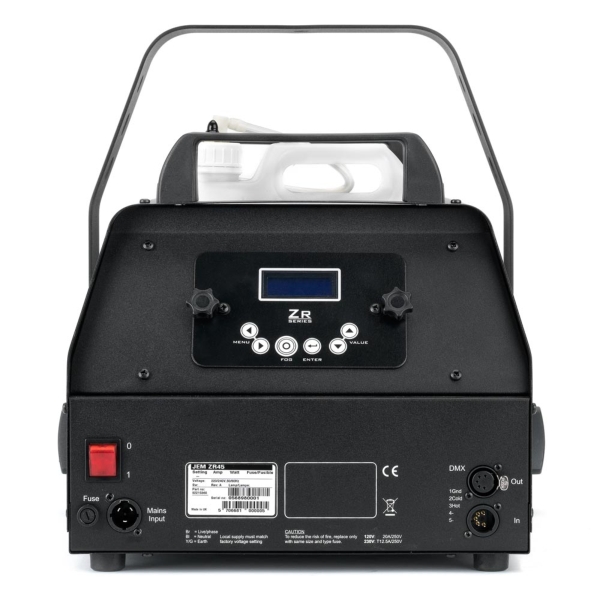

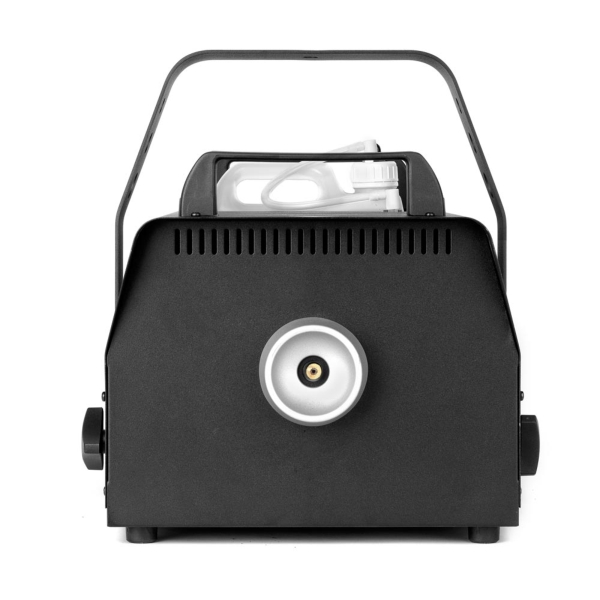

JEM ZR45 Smoke Machine

JEM ZR45 Smoke Machine Features

- High endurance high-end fog machine
- Exceptional performance and output
- Various control options via digital remote, DMX and RDM
- Robust roadworthy design
- Integrated Digital Remote Control
- DMX with RDM
- Floor standing or truss mounting (hanging bracket included)
- 2000 W (EU model) / 1800 W (US model) heat exchanger
- 1300 m³ (45,909 ft.³) per minute fog output
- Variable output control for subtle effects
- Continuous effect output
- Compatible with a wide range of JEM Pro-Fog fluids
- 5 l Fluid reservoir with quick-connect fitting
- Easy external fluid connection

JEM ZR45 Smoke Machine Specifications

Performance:
- Coverage volume: 1300 m³ (45,909 ft³) per minute
- Fluid consumption (max.): 210 ml per minute
- Maximum operating time, maximum output, 5 l of fluid: 1.18 hours
- Ready time: 10-minutes
- Effect Output: Continuous

Control:
- Control options: Integrated digital remote control, DMX, master/client link mode
- Control parameters: Continuous or timer-controlled output
- Fog: Variable output control, 0-100%

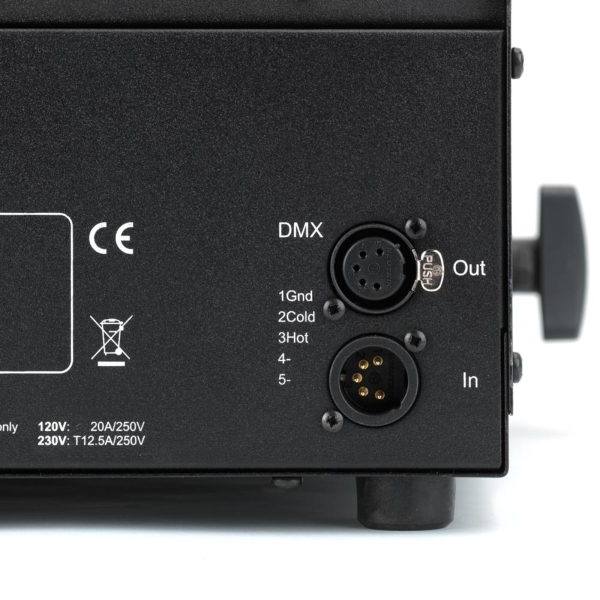

- DMX channels: 1
- External fluid control: Fluid sensing
- DMX compliance: ANSI E1.11 - USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20 RDM

Electrical:
- AC power: 220-240 V nominal, 50/60 Hz
- Main fuse: 12.5 AT (slow blow), 250 V
- Typical power and current: 2100 W, 9.2 A

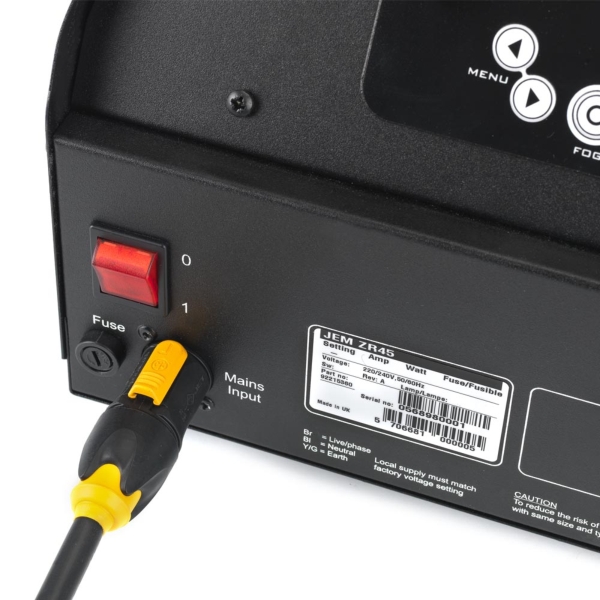

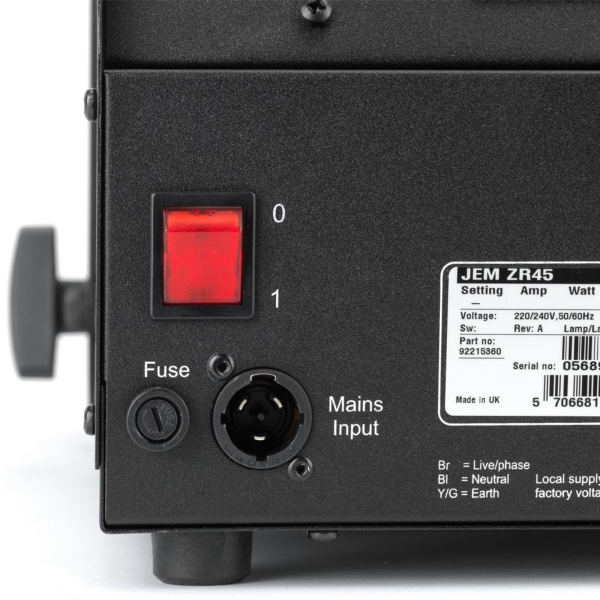

Connections:
- AC power: 220-240 V nominal, 50/60 Hz
- Main fuse: 12.5 AT (slow blow), 250 V
- Typical power and current: 2100 W, 9.2 A

Construction:
- Heat exchanger: 2000 W, thermally protected
- Fluid pump: Dual oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation

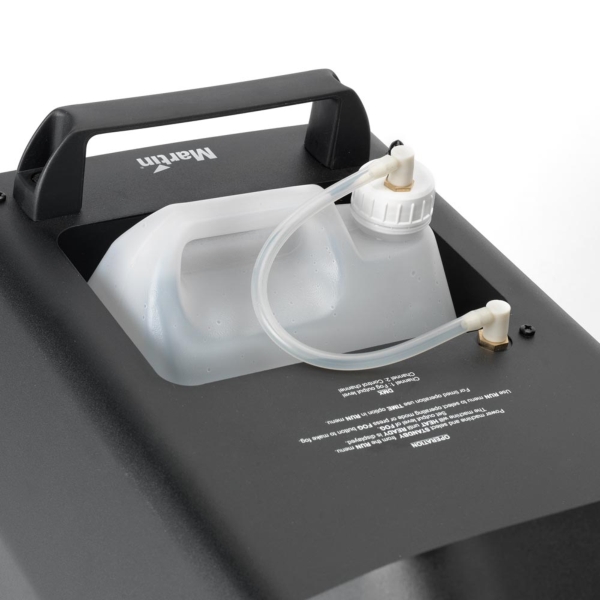

- Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting

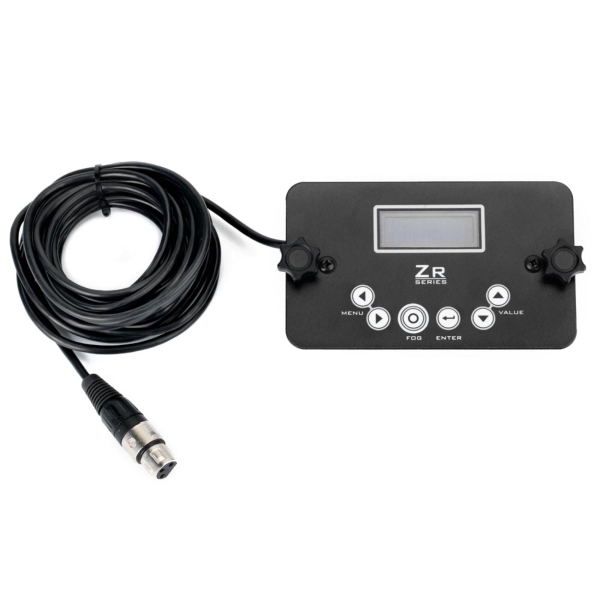

- Remote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR
- External Fluid Control: Fluid sensing

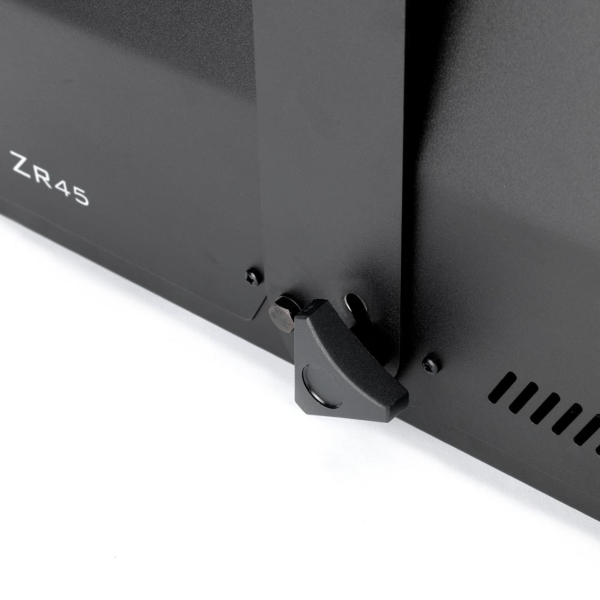

- Hanging bracket: Integrated yoke with safety attachment point

Thermal:
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Exterior surface temperature, steady state: 30° C (86° F)
- Maximum nozzle temperature: 290° C (554° F)

Installation:
- Mounting: Standing or hanging
- Orientation: Up to ±40° from horizontal
- Clearance around machine: 100 mm (4 in.)

Certification / Qualification:
- EU safety: EN 60 335-1+A15, EN62233
- EU EMC: EN 61000-6-3
- EU immunity: EN 61000-6-1
- United Kingdom: UKCA

Physical:
- Housing: Steel and aluminum
- Color: Black
- Dimensions (W x H x D): 395 x 306 x 602 mm ( 15.6 x 12.1 x 23.1 inches )
- Weight:
  - Dry: 17.7 kg (39.1 lbs.)
  - Filled: 22.7 kg (50 lbs.)

Further Product Information Below

JEM ZR Series Manual (PDF)

JEM ZR45 Data Sheet (PDF)

JEM ZR45 Technical Drawing (PDF)

JEM ZR45 Smoke Machine Supplied With

- Fluid reservoir, 5 l: P/N 34300506
- JEM ZR Series Integrated Digital Remote Control: P/N 92765048
- Power input cable: PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
