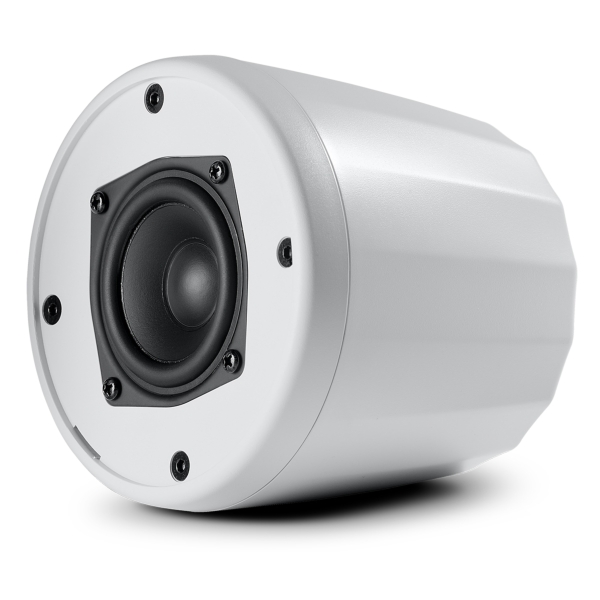

JBL Control 62P-WH 2.5-Inch Ultra-Compact Mid-High Satellite Pendant Speaker (Pair), 50W @ 16 Ohms - White

JBL Control 62P-WH 2.5-Inch Ultra-Compact Mid-High Satellite Pendant Speaker Features

- 2-inch (50 mm) driver
- 20 Watts, 16 ohms
- Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers

JBL Control 62P-WH 2.5-Inch Ultra-Compact Mid-High Satellite Pendant Speaker Specifications

- Frequency Range (-10dB): 150 Hz - 20 kHz
- Frequency Range (±3 dB): 200 Hz - 17 kHz
- Power Rating: 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
- Nominal Sensitivity: 87 dB (4.0 V, 1 W) 84 dB (2.83 V)
- Coverage Angle: 140° (+25°/-50°)
- Directivity Factor (Q): 4.7
- Directivity Index (DI): 6.2 dB
- Maximum SPL (1m): 97 dB continuous pink noise, 103 dB peak
- Impedance: 16 ohms (no transformer taps)
- Recommended High-Pass Frequency: 150 Hz
- Drivers: 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex coil-former.
- Enclosure: High impact polystyrene
- Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating.
- Input Connectors: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
- Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
- Dimensions (H x W x D): 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
- Net Weight (each): 0.7 kg (1.5 lbs)
- Shipping Weight (pair): 2.0 kg (4.3 lbs)
- Optional Accessories: MTC-PC62 top panel / terminal cover
- Colors: Available in black or white (-WH). Paintable

Further Product Information Below

JBL Control 62P-WH Data Sheet (PDF)

JBL Control 60 Series Installation Instructions (PDF)

JBL Control 62P-WH 2.5-Inch Ultra-Compact Mid-High Satellite Pendant Speaker Supplied With

- Two suspension cable systems (see "Suspension", above)
- Two 2-pin removable locking euro-block connectors
- Two rubber covers for euro-block connectors
